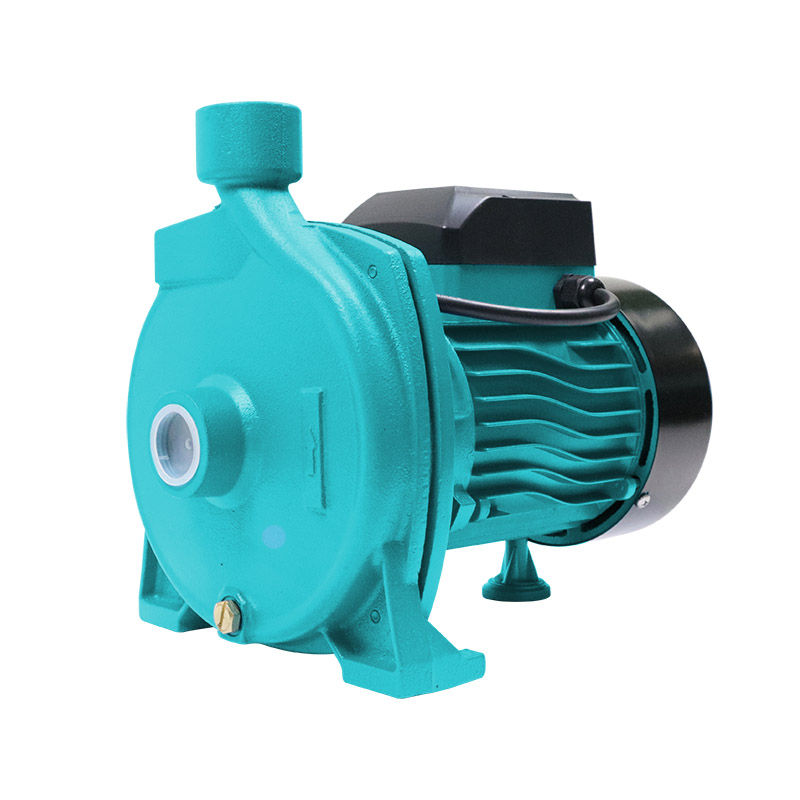

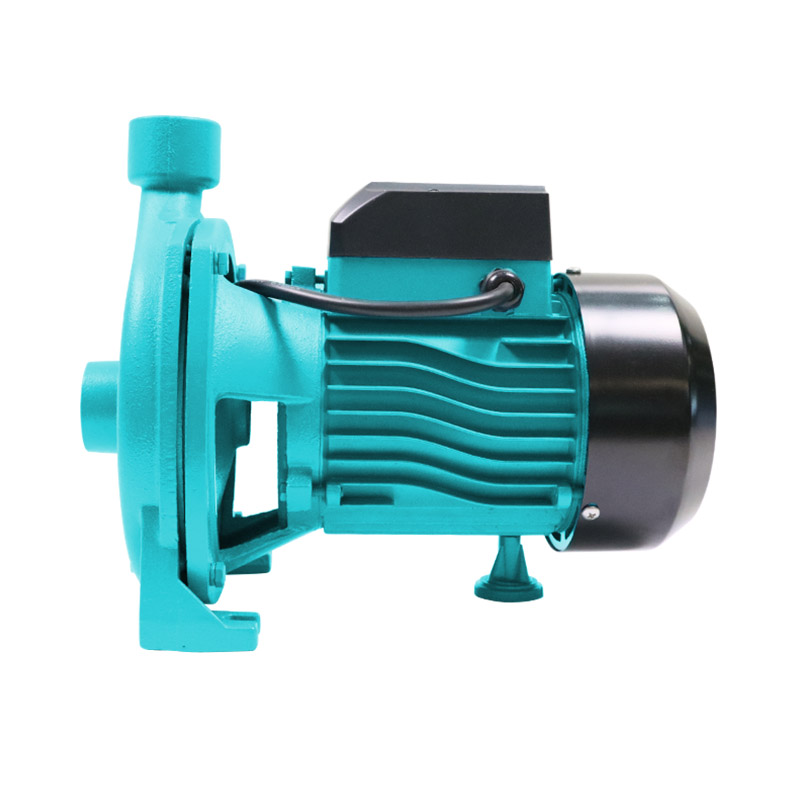

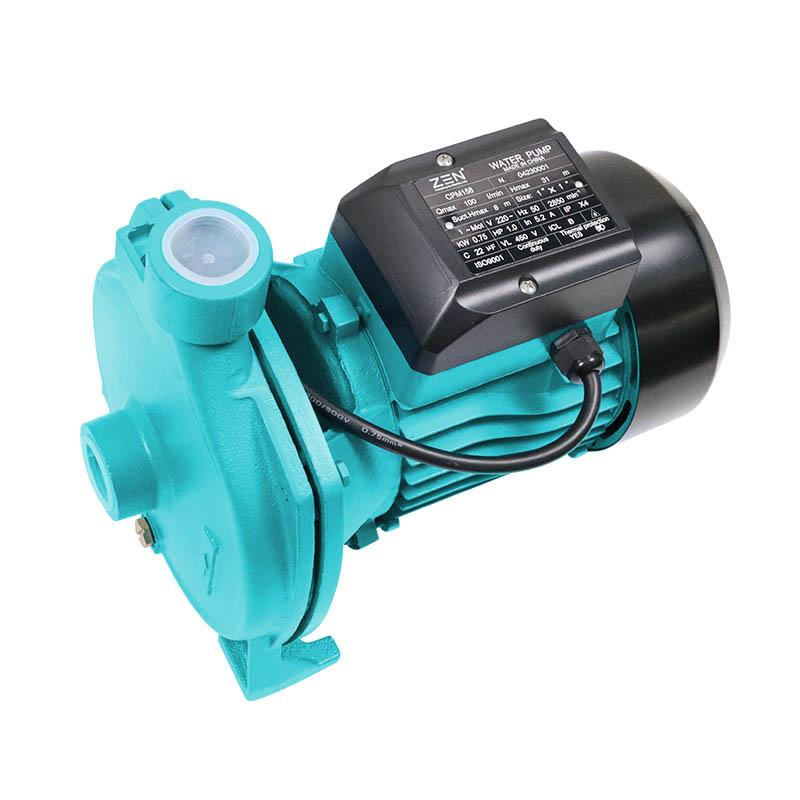

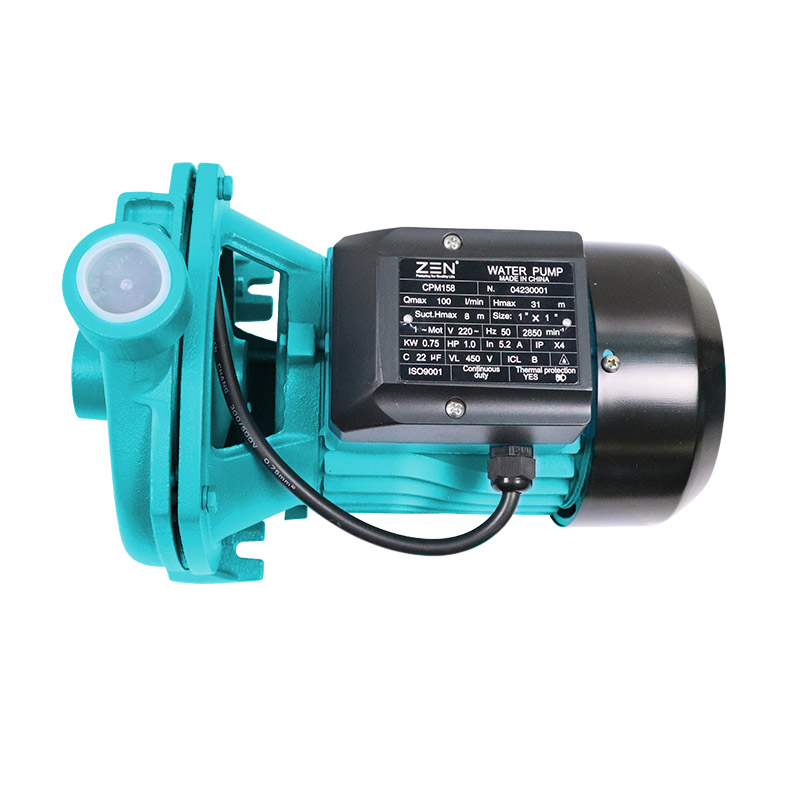

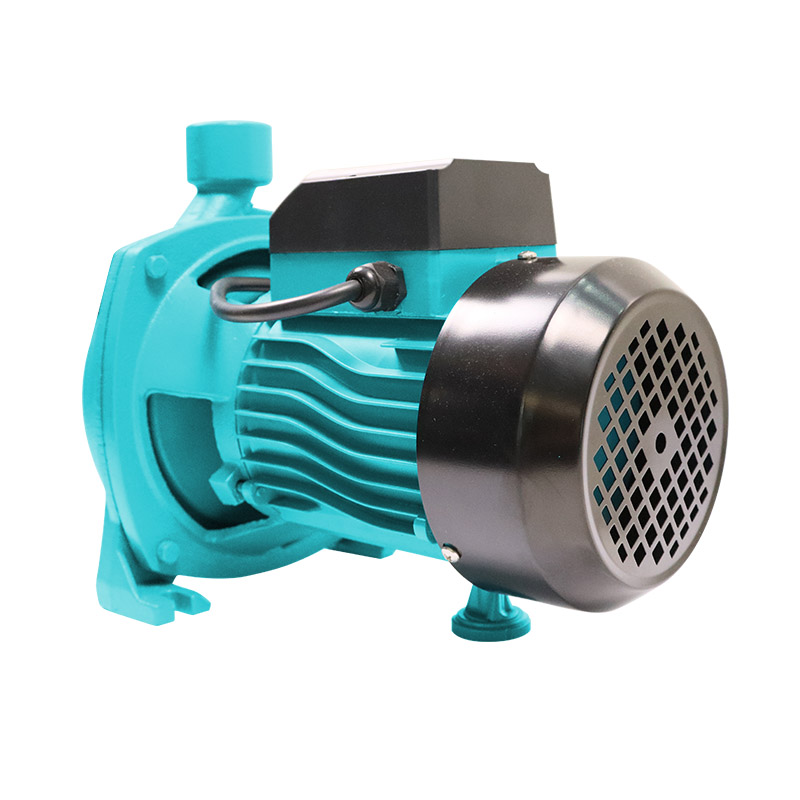

ZEN brand CPM Centrifugal Pump has user-friendly features such as easy installation and maintenance, making it a convenient and hassle-free choice for customers.
Pump*Casting and support of cast iron pump
* Stainless steel/brass wheels
*Maximum liquid temperature: + 40°C
*Maximum suction: +8m
electric motor with copper winding
Shaft: Stainless steel welding shaft/45# steel shaft
Insulation class: B or F
Protection class: IPX4
Maximum ambient temperature: + 40°C
Cooling: external ventilation
CPM Centrifugal Pump can be used to transport pure water or other liquids with physical and chemical properties similar to water. Suitable for industrial and municipal water supply, high-rise buildings and fire-fighting pressurization, garden irrigation, long-distance water supply, heating, ventilation and air control, cold and hot water circulation and injection and auxiliary equipment.

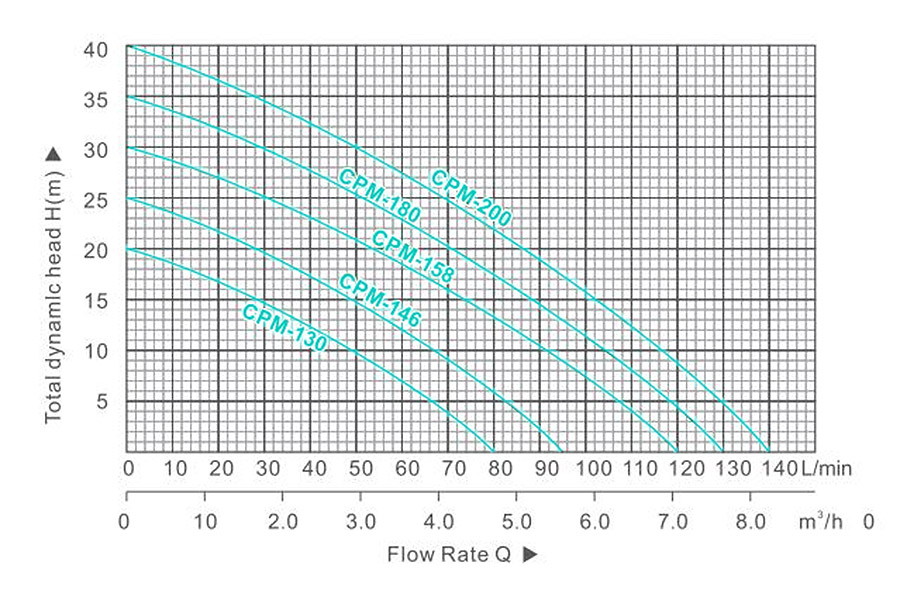

| Model | Power |
Maximum flow (L/min) |
Maximum head (m) |
Maximum range (m) |
Enter exit (Inch) |
GW (kg) |
Filler size (mm) |
|
| kW | HP | |||||||

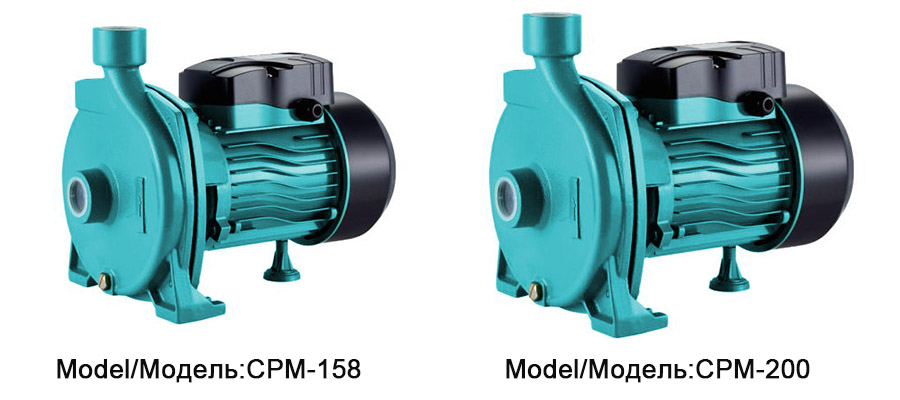

| CPM-130 | 0.37 | 0.5 | 80 | 20 | 8 | 1"×1" | 9 | 275×180×230 |
| CPM-146 | 0.55 | 0.75 | 95 | 25 | 8 | 1"×1" | 11 | 330×210×265 |
| CPM-158 | 0.75 | 1 | 120 | 30 | 8 | 1"×1" | 12 | 350×205×270 |
| CPM-180 | 1.1 | 1.5 | 130 | 35 | 8 | 1"×1" | 21 | 400×240×310 |
| CPM-200 | 1.5 | 2 | 140 | 40 | 8 | 1"×1" | 23 | 400×240×310 |
