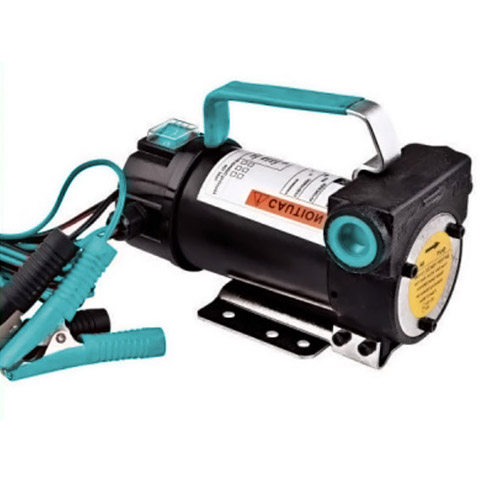

ZEN Machinery high quality DCTP Transfer Pump is suitable for pumping kerosene or diesel fuel. And they are not suitable for the transmission of low-flashpoint fuels (e.g. gasoline, liquefied petroleum gas and alcohol, etc.). D.). They are particularly suitable for all kinds of machinery, tractors and agricultural equipment. They can also be used with a refueling gun and filters to ensure the flow of pure diesel or kerosene fuel. The pump has thermal protection and can be turned off when the maximum operating temperature of the pump is reached. Pumps should be installed indoors or at least in a weather-protected place.
This large pump pump is seasoned with diesel fuel, kerosene, and not gasoline. Its pump head is made of iron and 100% copper wire, its specifications are as follows:
A. Certification CE and IP54 protection
B. Pumps with shunting and self -consumption
C.4m Modeling Hose and 1.5m suction hose
D. Filter or check valve

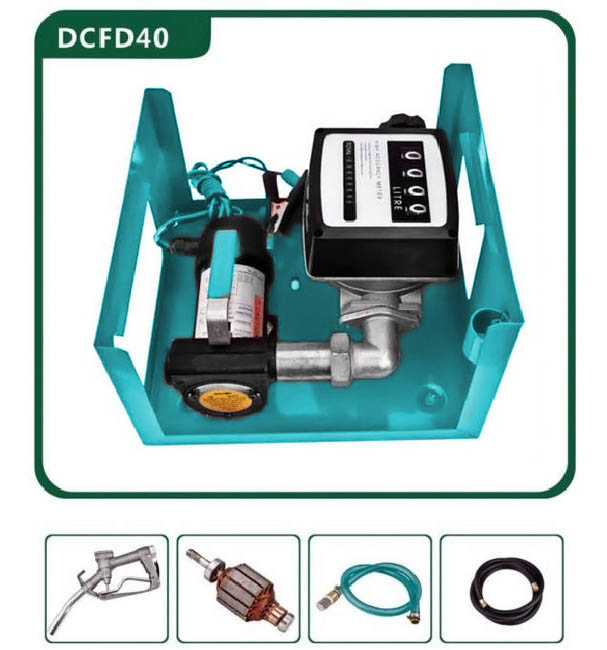

| Model | DCFD40 | DCFD60 | DCFD80 |
| Stream speed | 40l/min | 60L/min | 80l/min |
| Voltage | 12V or 24V | 12V or 24V | 12V or 24V |
| Delive up a hose | 4m | 4m | 4m |
| Manual nozzle | Yes | Yes | Yes |
| Filter | Yes | Yes | Yes |
| Salting hose | 1.5m | 1.5m | 1.5m |
Note: the above table is a standard table, we can install the FM flow meter - 120 - 1, automatic nozzle AC - 11A, 1.5 - meter absorption hose and a return valve at the request of the client.

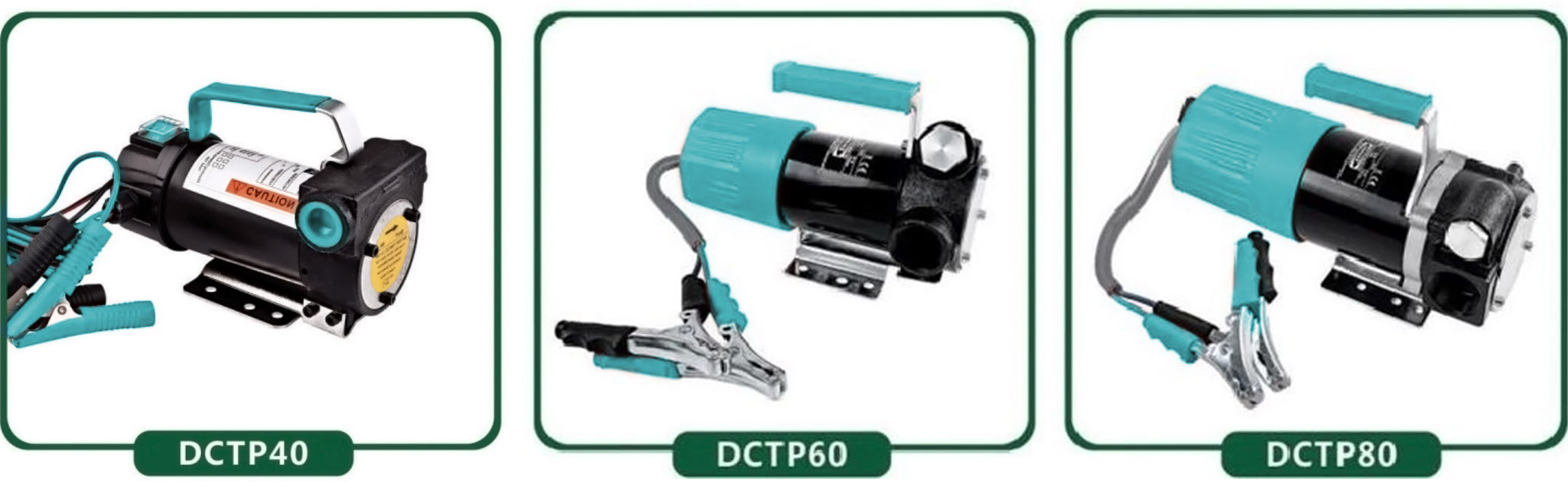

| Element | Stream speed | Voltage | Power (w) | Maximum pressure | The length of absorption |
| DCTP40 | 40l/min | 12V or 24V | 150 | 3bar | 5m |
| DCTP60 | 60L/Min | 12V or 24V | 200 | 3bar | 5m |
| DCTP80 | 80l/min | 12V or 24V | 250 | 3bar | 5m |
This pump refuels diesel fuel, kerosene, not gasoline. Its pump head is made of aluminum and uses 100% copper wire with the following characteristics:
A. has CE certification. IP54 protection
B. Pumps with shunting and self -consumption
S. Protection against thermal overload
D. filters and connectors

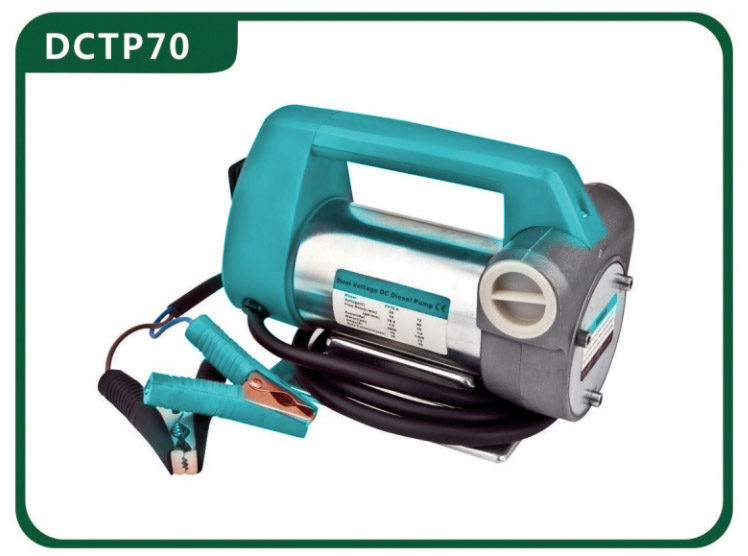

| Model | Voltage (v) | Stream speed | The engine works (RPM) |
| DCTP70 | 24v | 40l/min | 1400 |
| 12v | 70l/min | 2800 | |
