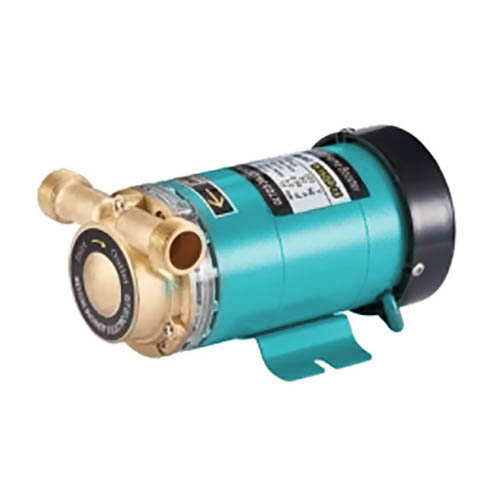

ZEN Machinery high quality WG Automatic Booster Pump for automatic pressure increase in domestic tap water, increase pressure in solar systems, increase pressure in hot or cold water pipelines, etc. d.
|
MODEL MODEL |
POWER POWER (W) |
VOLTAGE VOLTAGE (V) |
FREQUENCY FREQUENCY (Hz) |
AVERAGE TEMPERATURE MEDIUM TEMPERATURE (℃ ) |
CONNECTION SIZE CONNECTION SIZE (IN) |
SPEED SPEED (r/min) |
MAX. HEAD MAX. HEAD (m) |
RATING. HEAD RATED HEAD (m) |
MAX. FLOW MAX. FLOW (L/min) |
RATING. FLOW RATED. FLOW (L/min) |

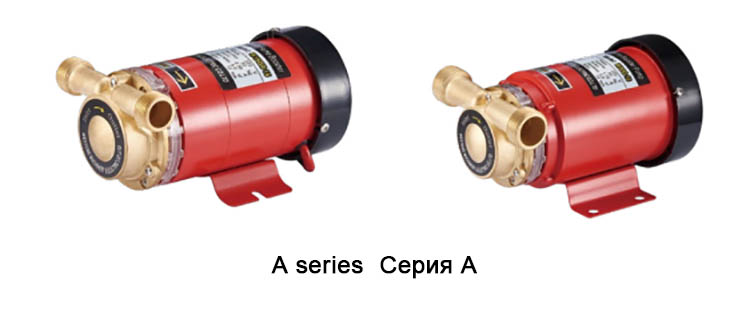

| W15G-10A | 100 | 110/220 | 50/60 | 40 | 3/4" → 1/2" | 2860/3300 | 10 | 8 | 20 | 10 |

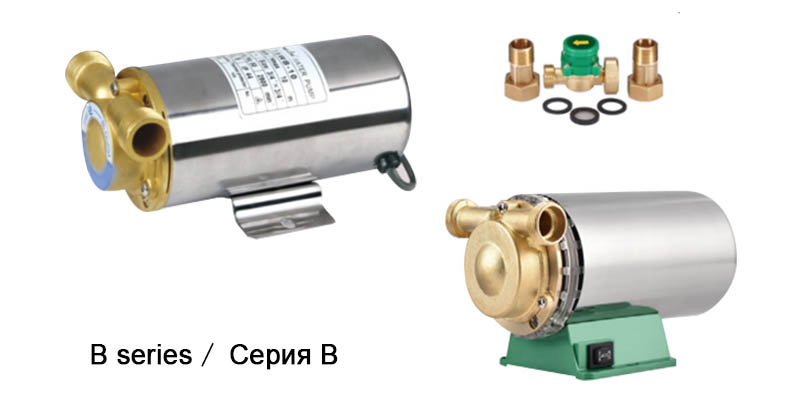

| W15G-10B | ||||||||||
| W15GR-10 | 100 | 110/220 | 50/60 | 100 | 3/4" → 1/2" | 2860/3300 | 10 | 8 | 20 | 10 |
| W15G-15A | 150 | 110/220 | 50/60 | 40 | 3/4" → 1/2" | 2860/3300 | 15 | 10 | 25 | 13 |
| W15G-15B | ||||||||||
| W15GR-15A | 150 | 110/220 | 50/60 | 100 | 3/4" → 1/2" | 2860/3300 | 15 | 10 | 25 | 13 |
| W15GR-15B | ||||||||||
| W20G-15A | 150 | 110/220 | 50/60 | 40 | 1" → 3/4" | 2860/3300 | 15 | 10 | 30 | 15 |
| W20G-15B | ||||||||||
| W20GR-15A | 150 | 110/220 | 50/60 | 100 | 1" → 3/4" | 2860/3300 | 15 | 10 | 30 | 15 |
| W20GR-15B | ||||||||||
| W15G-18 | 280 | 110/220 | 50/60 | 40 | 3/4" → 1/2" | 2860/3300 | 18 | 13 | 30 | 15 |
| W20G-18 | 280 | 110/220 | 50/60 | 40 | 1" → 3/4" | 2860/3300 | 18 | 13 | 35 | 18 |
| W15GR-18 | 280 | 110/220 | 50/60 | 100 | 3/4" → 1/2" | 2860/3300 | 18 | 13 | 30 | 15 |
| W20GR-18 | 280 | 110/220 | 50/60 | 100 | 1" → 3/4" | 2860/3300 | 18 | 13 | 35 | 18 |
All parameters at 220 V / 50 Hz
G - Cold water
GR - Cold hot water
