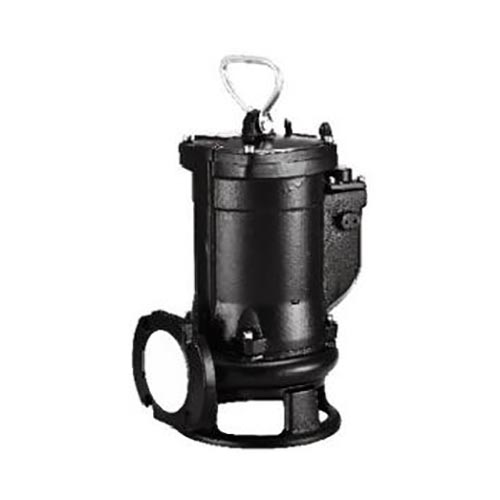

The WQGT Grinding Machine Cast Iron Sewage Pump is suitable for the chemical industry, petroleum industry, pharmaceutical industry, mining industry, paper industry, cement plants, steel mills, power plants, coal processing industry, urban sewage treatment drainage systems, municipal construction, construction sites, and other industries. It can pump wastewater containing particles and clean water. Since the maximum solid passage size is 32 mm, the pump can handle dirt and debris with large particle diameters, making it suitable for wastewater transport and discharge. When pumping wastewater, the pump is equipped with a thickened base, which has a large water handling capacity and can be used in various sewage systems; when pumping clean water, the filtration is good, and the service life is long.
| 50 | WQGT | 10 | 10 | 0.75 |
|
Output size Outlet Size (mm) |
Pump type Pump Type |
Rating. Flow Rated Flow (m²/h) |
Nominal head Rated head (m) |
Power Power (kW) |

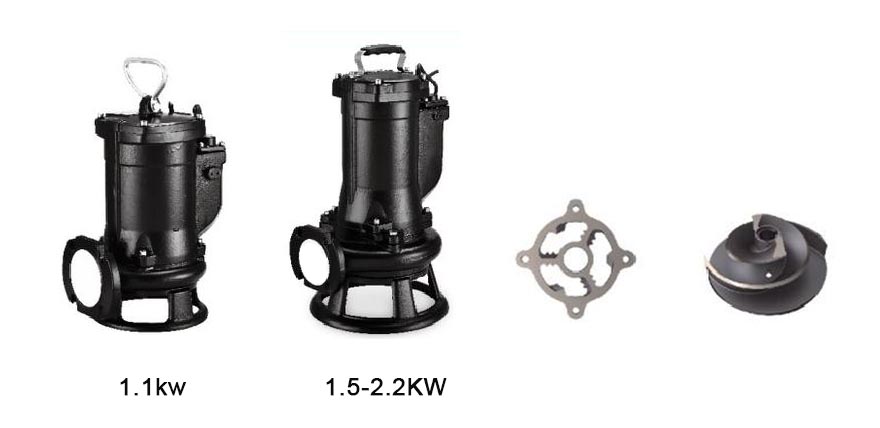

| Power | 0.75-2.2 kw |
| Poles/Poles | 2 |
| Caliber/Discharge | DN50-80 |
| Max. Flow/Max flow rate | 56 m³/h |
| Max.pressure/Max head | 28 m |
|

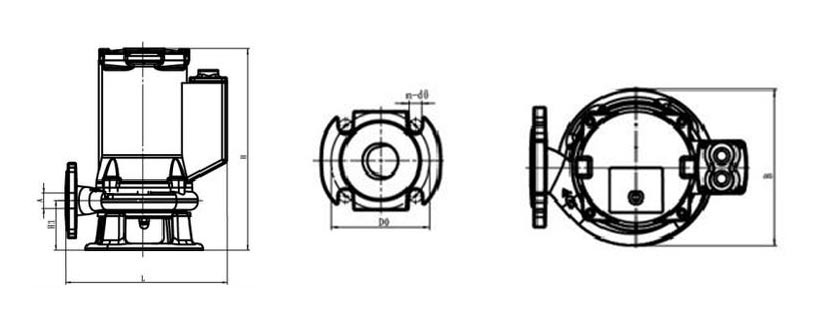

Type Type |
Caliber A (mm) |
L (mm) | L1 (mm) | B (mm) | H (mm) | H1 (mm) | H2 (mm) | D0 (mm) | n-d0 (mm) |
| 50WQGT10-10-0.75 | 40 | 245 | 175 | 305 | 74 | 110 | 15 | ||
| 50WQGT12-10-1.1 | 40 | 245 | 175 | 305 | 74 | 110 | 5 | ||
| 50WQGT12-15-1.5 | 50 | 435 | 240 | 435 | 122 | 110 | 15 | ||
| 50WQGT10-20-2.2 | 50 | 450 | 270 | 450 | 128 | 110 | 15 | ||
| 65WQGT25-15-2.2 | 65 | 450 | 270 | 500 | 128 | 130 | 15 | ||
| 80WQGT35-10-2.2 | 80 | 450 | 270 | 500 | 128 | 150 | 15 |
|
TYPE Type |
Voltage (V) |
Power | Outlet |
Skip particle size Skip particle size (mm) |
Rating. Flow Q.rated (m³/h) |
Max. Effort H.max (m) |
Max. Flow Q.max (m³/h) |
Max. Effort H.max (m) |
Weight G.W. (kg) |
Parcel size Parcel size (cm) |
||
| (KW) | (HP) | (inch) | (mm) | |||||||||
| 50WQGTD10-10-0.75 | 1Ph/220V | 0.75 | 1 | 2" | 50 | 20 | 10 | 10 | 20 | 14.7 | 31×19×34 | |
| 50WQGT10-10-0.75 | 3Ph/380V | 0.75 | 1 | 2" | 50 | 20 | 10 | 10 | 20 | 14.7 | ||
| 50WQGTD10-12-1.1 | 1Ph/220V | 1.1 | 1.5 | 2" | 50 | 20 | 10 | 12 | 22.5 | 16.4 | 23 | |
| 50WQGT10-12-1.1 | 3Ph/380V | 1.1 | 1.5 | 2" | 50 | 20 | 10 | 12 | 22.5 | 16.4 | 23 | |
| 50WQGTD12-15-1.5 | 1Ph/220V | 1.5 | 2 | 2" | 50 | 20 | 12 | 15 | 33.5 | 19.1 | 35 | 51×29×24.5 |
| 50WQGT12-15-1.5 | 3Ph/380V | 1.5 | 2 | 2" | 50 | 20 | 12 | 15 | 33.5 | 19.1 | 35 | |
| 65WQGTD25-10-1.5 | 1Ph/220V | 1.5 | 2 | 2.5" | 65 | 26 | 25 | 10 | 35 | 18.5 | 35 | |
| 65WQGT25-10-1.5 | 3Ph/380V | 1.5 | 2 | 2.5" | 65 | 26 | 25 | 10 | 35 | 18.5 | 35 | |
| 50WQGTD10-20-2.2 | 1Ph/220V | 2.2 | 3 | 2" | 50 | 20 | 10 | 20 | 32.7 | 28 | 41 | 53.5×31×27 |
| 50GNWO10-20-2.2 | 3Ph/380V | 2.2 | 3 | 2" | 50 | 20 | 10 | 20 | 32.7 | 28 | 41 | |
| 65WQGT25-15-2.2 | 3Ph/380V | 2.2 | 3 | 2.5” | 65 | 26 | 25 | 15 | 27 | 27.1 | 41 | |
| 80WQGT35-10-2.2 | 3Ph/380V | 2.2 | 3 | 3" | 80 | 32 | 35 | 10 | 56 | 26 | 43 | |
