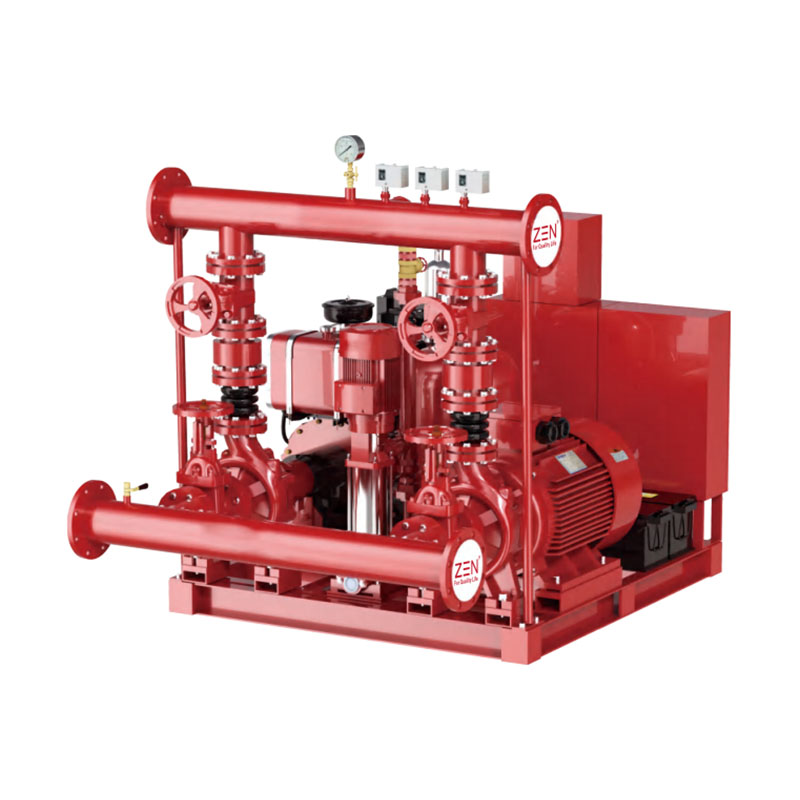

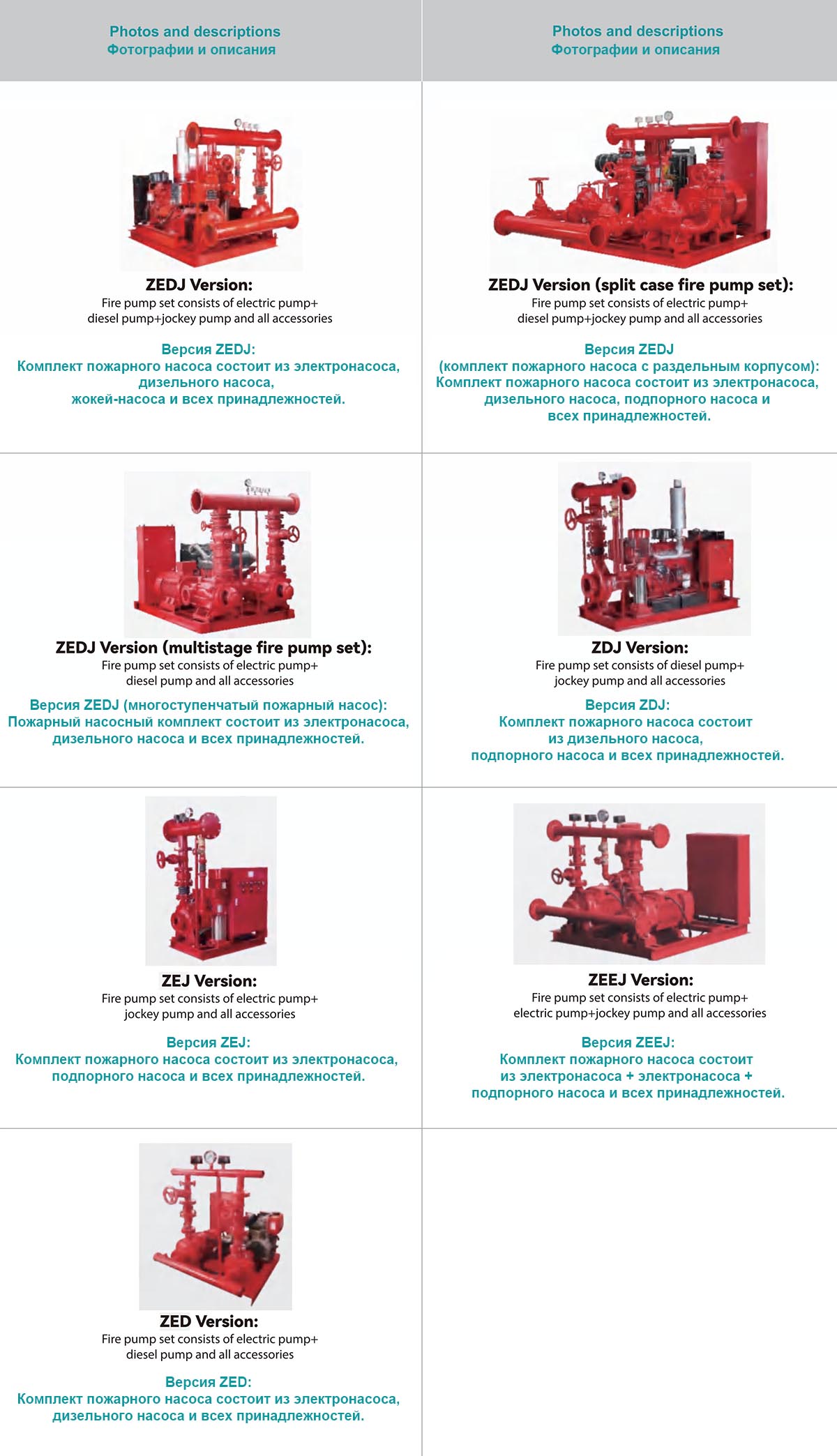

As the professional manufacturer, Zen would like to provide you high quality ZEDJ Fire Fighting System. Our fire pumps are designed for whole operational life, themaximum reliability is always the first priority.
High quality ZEDJ Fire Fighting System is offered by China manufacturer ZEN Machinery. We manufacture fire pumps strictly according to international standards, committed to providing high-quality products to customers worldwide. Please feel free to contact us anytime.
1. The components are mounted on a steel frame structure.
2. Each controller has its own pressure measurement line.
3. The suction line should not include a strainer.
4. Check valve and throttle valve on the discharge line.
5. NFPA 20 certification does not allow negative suction for end suction and split casing pumps.

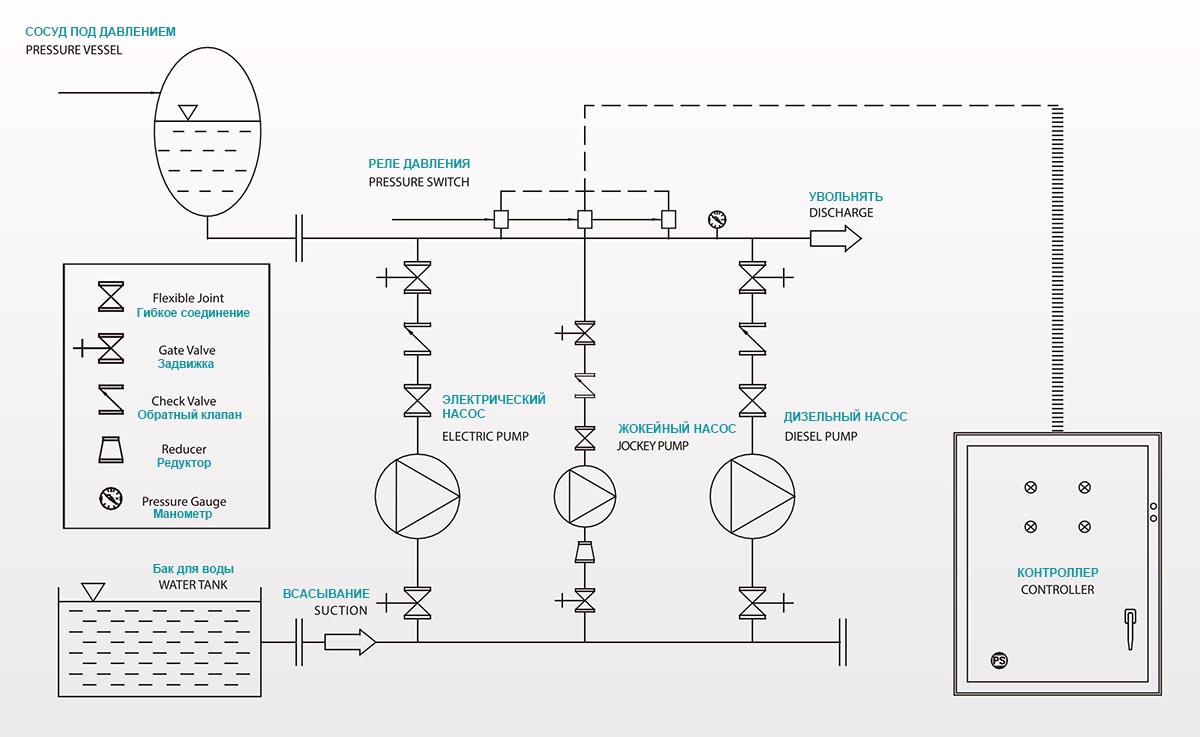

When pressure drops below the set value, jockey starts running with the signal from the pressure switch and continues running for 10minutes till the system pressure reaches the set value. If the pressure continues drop, first the main pump starts to run. If the system pressure can't supply and pressure continues drop, the standby pump starts to run.
 |

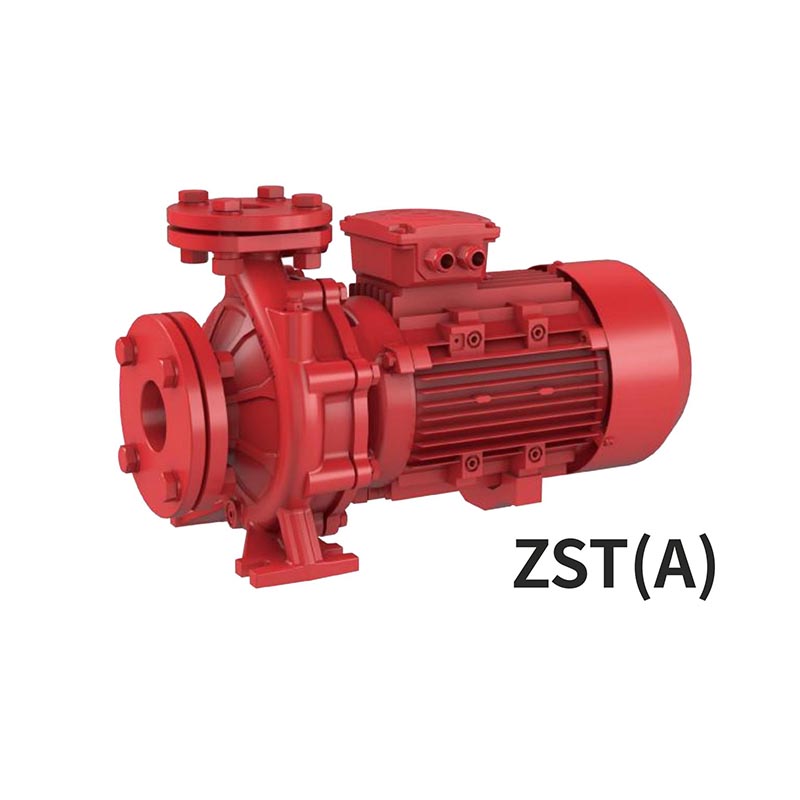

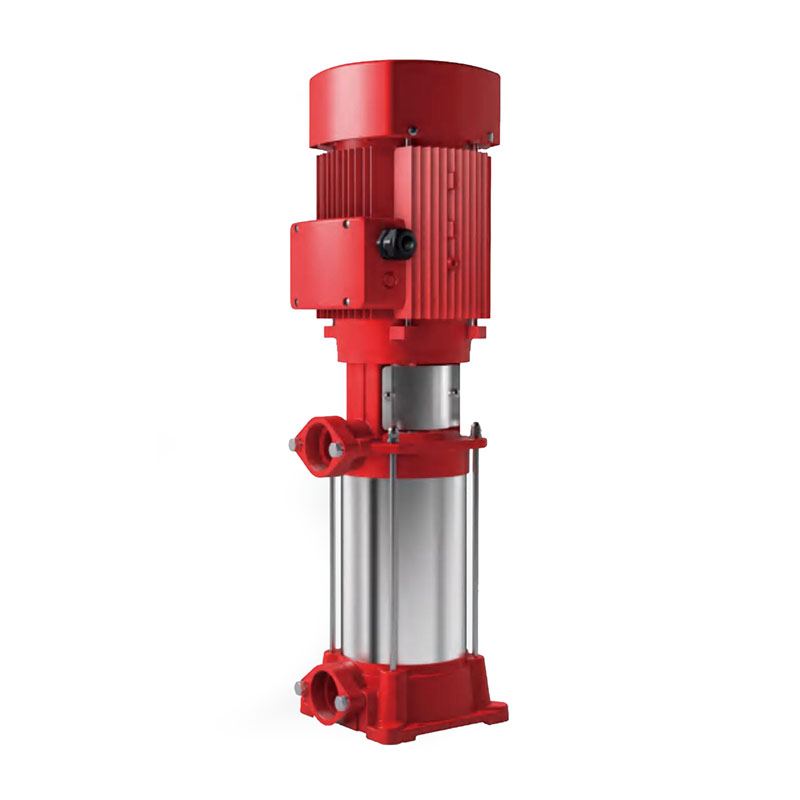

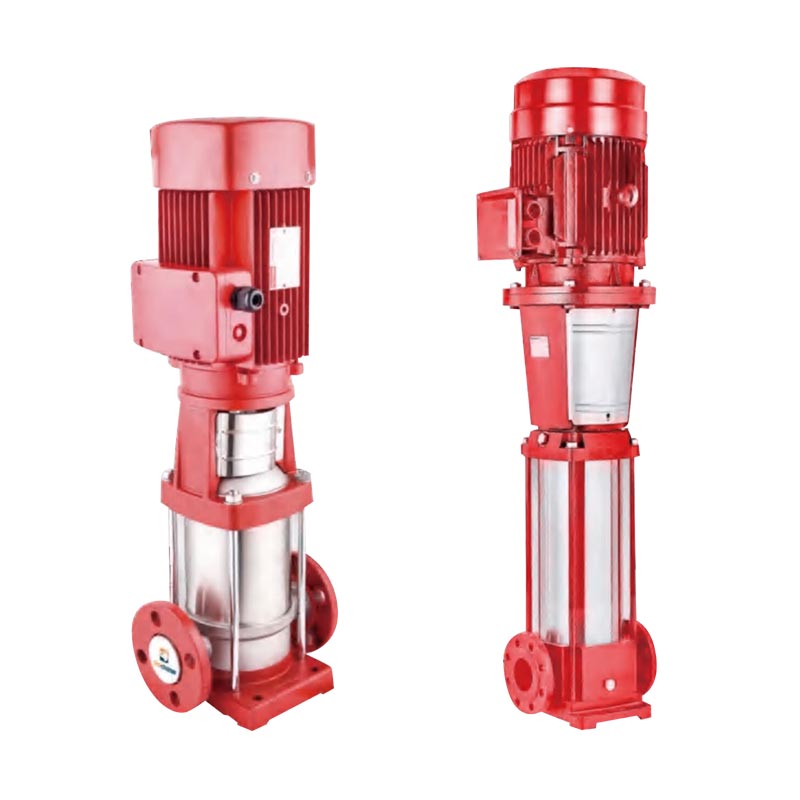

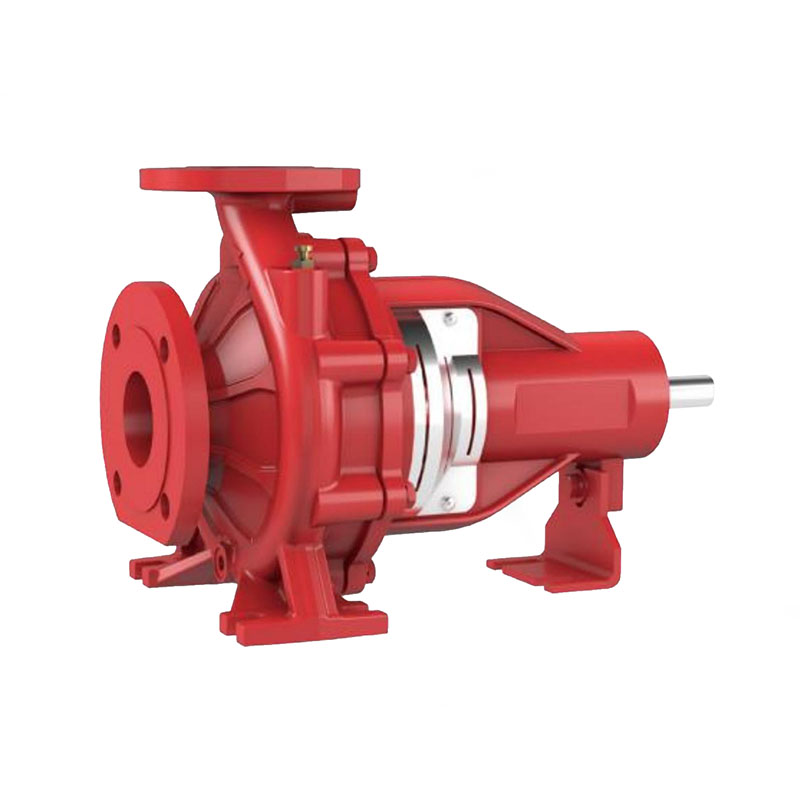

Q | H | Electric | Diesel | Jockey | ||
| Option 1 | Option 2 | Option 1 | Option 2 | ||||
| Closely connected | Раздельные сопряженные | Type of clutch | Plastic impeller | Рабочее колесо SS304 | |||
| GPM | There is |
 |
 |
 |
 |
 |
|

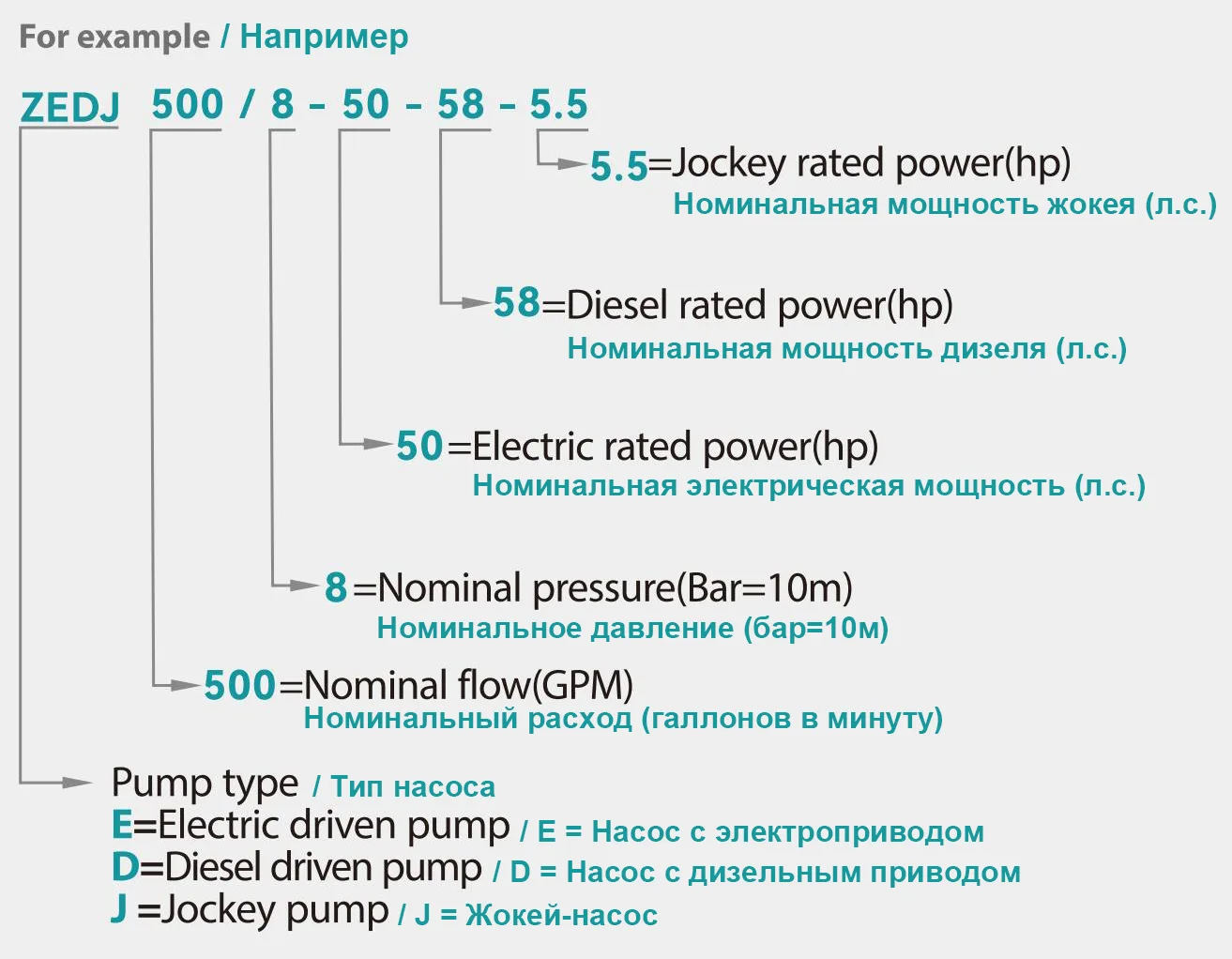

| ZEDJ 50/6-5.5-8.6-2 | 50 | 6 | ZST 32-250/557.5HP | XAD32-250/557.5HP | SD 32-250/558.6HP | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/7-7.5-10-2 | 50 | 7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/8-10-12-3 | 50 | 8 | ZST 32-250/11015HP | XAD32-250/110 15HP | SD 32-250/11012HP | SVP4-10/3HP | CDL(F)1-15/1HP |
| ZEDJ 50/9-10-27-3 | 50 | 9 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27HP | SVP4-10/3HP | CDL(F)1-17/1.5HP |
| ZEDJ 100/7-10-10-2 | 100 | 6-7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F)2-11/1.5HP |
| ZEDJ 100/8-15-27-3 | 100 | 8 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 100/9-17.5-27-3 | 100 | 9 | ZST 40-250/185 25HP | XAD40-250/185 25HP | SD40-250/185 27HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 120/7-10-12-3 | 120 | 7 | ZST 32-250/75D 10HP | XAD32-250/75H 10HP | SD 32-250/75H 12HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 150/7-15-12-3 | 150 | 7 | ZST 40-250/110 15HP | XAD40-250/110 15HP | SD 40-250/110 12HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/6-20-27-3 | 200 | 6 | ZST 50-250/150 20HP | XAD50-250/150 20HP | SD 50-250/150 27HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/7-25-27-3 | 200 | 7 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/8-30-32-3 | 200 | 8 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP4-10/3HP | CDL(F)4-12/3HP |
| ZEDJ 200/9-40-38-4 | 200 | 9 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP4-12/4HP | CDL(F)4-123/HP |
| ZEDJ 200/10-50-58-4 | 200 | 10 | XAD50-315/37050HP | SD 50-315/370 58HP | SVP6-8/4HP | CDL(F)4-14/4HP | |
| ZEDJ 250/7-25-27-4 | 250 | 7 | ZST 50-250/18525HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP6-8/4HP | CDL(F)4-12/3HP |
| ZEDJ 300/6-25-27-4 | 300 | 6 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27HP | SVP6-8/4HP | CDL(F)8-6/3HP |
| ZEDJ 300/7-30-32-4 | 300 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP6-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/8-40-38-4 | 300 | 8 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/10-50-58-5.5 | 300 | 9-10 | - | XAD50-315/370 50HP | SD 50-315/370 58HP | SVP8-10/5.5HP | CDL(F)8-12/5.5HP |
| ZEDJ 350/7-30-32-4 | 350 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/6-30-32-4 | 400 | 6 | ZST 65-250/220 30HP | XAD65-250/220 30HP | SD 65-250/220 32HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/7-40-38-5.5 | 400 | 7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38HP | SVP8-10/5.5HP | CDL(F)8-8/4HP |
| ZEDJ 400/8-50-58-5.5 | 400 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/370 58HP | SVP8-10/5.5HP | CDL(F)8-10/5.5HP |
| ZEDJ 400/9-60-61-7.5 | 400 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61HP | SVP12-6/7.5HP | CDL(F)8-12/5.5HP |
| ZEDJ 500/7-40-38-5.5 | 500 | 6-7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38HP | SVP12-4/5.5HP | CDL(F)12-8/7.5HP |
| ZEDJ 500/8-50-58-7.5 | 500 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/37058HP | SVP12-6/7.5HP | CDL(F)12-8/7.5HP |
| ZEDJ 500/9-60-61-7.5 | 500 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61HP | SVP12-6/7.5HP | CDL(F)12-9/7.5HP |
| ZEDJ 500/11-75-75-7.5 | 500 | 10-11 | ZST 65-315/550 75HP | XAD65-315/550 75HP | SD 65-315/550 75HP | SVP12-6/7.5HP | CDL(F)12-12/10HP |
| ZEDJ 500/13-100-100-15 | 500 | 12-13 | ZST 65-315/750 100HP | XAD65-315/750 100HP | SD 65-315/750 100HP | - | CDL(F)12-14/15HP |
|
|
Q | H | Electric | Diesel | Jockey | ||
| Option 1 | Option 2 | Option 1 | Option 2 | ||||
| Closely connected | Раздельные сопряженные | Type of clutch | Plastic impeller | Рабочее колесо SS304 | |||
| GPM | There is |
|
|
|
|
|
|
| ZEDJ 500/14-125-125-15 | 500 | 14 | ZST 65-315/900 125HP | XAD65-315/900 125HP | SD 65-315/900 125HP | - | CDL(F)12-14/15HP |
| ZEDJ 750/7-60-61-10 | 750 | 6-7 | ZST 80-250/450 60HP | XAD80-250/450 60HP | SD 80-250/450 61HP | - | CDL(F)16-8/10HP |
| ZEDJ 750/8-75-75-10 | 750 | 8 | ZST 80-250/550 75HP | LIMIT 80-250/550 75HP | SD80-250/550 75HP | - | CDL(F)16-8/10HP |
| ZEDJ 750/9-100-100-10 | 750 | 9 | - | LIMIT 80-250/750 100HP | SD 80-250/750 100HP | - | CDL(F)16-8/10HP |
| ZEDJ 750/11-100-100-12 | 750 | 10-11 | ZST 80-315/750 100HP | XAD 80-315/750 100HP | SD 80-315/750 100HP | - | CDL(F)16-10/15HP |
| ZEDJ 50/13-125-125-15 | 750 | 12-13 | ZST 80-315/900 125HP | LIMIT 80-315/900 125HP | SD 80-315/900 125HP | - | CDL(F)16-12/15HP |
| ZEDJ 50/14-150-150-15 | 750 | 14 | - | XAD 80-315/1100 150HP | SD 80-315/1100 150HP | - | CDL(F)16-14/20HP |
| ZEDJ 1000/8-100-100-10 | 1000 | 8 | ZST 100-250/750 100HP | LIMIT 100-250/750 100HP | SD 100-250/750 100HP | - | CDL(F))20-8/15HP |
| ZEDJ 1000/9-125-125-12 | 1000 | 9 | ZST 100-250/900 125HP | LIMIT 100-250/900 125HP | SD 100-250/900 125HP | - | CDL(F)20-10/15HP |
| ZEDJ 1000/11-150-150-12 | 1000 | 10-11 | ZST 100-315/1100 150HP | XAD100-315/1100 150HP | SD 100-315/1100 150HP | - | CDL(F)20-10/15HP |
| ZEDJ 1000/12-180-170-15 | 1000 | 12 | ZST 100-315/1320 180HP | XAD 100-315/1320 180HP | SD 100-315/1320 170HP | - | CDL(F)20-14/20HP |
| ZEDJ 1000/14-220-225-20 | 1000 | 13-14 | ZST 100-315/1600 220HP | XAD 100-315/1600 220HP | SD 100-315/1600 225HP | - | CDL(F)20-14/20HP |
| ZEDJ 1250/8-150-150-12 | 1250 | 8 | - | LIMIT 125-250/1100 150HP | SD 125-250/1100 150HP | - | CDL(F)32-60/15HP |
| ZEDJ 1250/9-180-170-15 | 1250 | 9 | - | LIMIT 125-315/1320 180HP | SD 125-315/1320 170HP | - | CDL(F)32-60/15HP |
| ZEDJ 1250/11-220-225-15 | 1250 | 10-11 | - | LIMIT 125-315/1600 220HP | SD 125-315/1600 225HP | - | CDL(F)32-80/20HP |
| ZEDJ 1250/12-250-270-20 | 1250 | 12 | - | LIMIT 125-315/1850 250HP | SD 125-315/1850 270HP | - | CDL(F) 32-80/20HP |
| ZEDJ 1250/13-270-270-25 | 1250 | 13 | - | XAD 125-315/2000 270HP | SD 125-315/2000 270HP | - | CDL(F)32-100/25HP |
| ZEDJ 1500/8-180-170-15 | 1500 | 8 | - | XAD 125-250H/1320 180HP | SD 125-250H/1320 170HP | - | CDL(F))32-80/20HP |
| ZEDJ 1500/9-180-170-20 | 1500 | 9 | - | LIMIT 125-315/1320 180HP | SD 125-315/1320 170HP | - | CDL(F)32-80/20HP |
| ZEDJ 1500/10-220-225-20 | 1500 | 10 | - | LIMIT 125-315/1600 220HP | SD 125-315/1600 225HP | - | CDL(F)32-80/20HP |
| ZEDJ 1500/12-250-270-25 | 1500 | 11-12 | - | LIMIT 125-315/1850 250HP | SD 125-315/1850 270HP | - | CDL(F))32-100/25HP |
| ZEDJ 1500/13-270-270-25 | 1500 | 13 | - | XAD125-315/2000 270HP | SD 125-315/2000 270HP | - | CDL(F)32-100/25HP |
| ZEDJ 2000/8-220-225-25 | 2000 | 8 | - | LIMIT 150-250/1600 220HP | SD 150-250/1600 225HP | - | CDL(F)45-50/25HP |
| ZEDJ 2000/9-270-270-25 | 2000 | 9 | - | XAD 150-250/2000 270HP | SD 150-250/2000 270HP | - | CDL(F)45-50/25HP |
| ZEDJ 2000/10-340-340-30 | 2000 | 10 | - | XAD 150-315/2500 340HP | SD 150-315/2500 340HP | - | CDL(F)45-60/30HP |
| ZEDJ 2000/13-430-410-40 | 2000 | 11-13 | - | LIMIT 150-315/3150 430HP | SD 150-315/3150 410HP | - | CDL(F)45-70/40HP |
| ZEDJ 2500/8-220-225-30 | 2500 | 8 | - | LIMIT 150-250/1600 220HP | SD 150-250/1600 225HP | - | CDL(F)64-40/30HP |
| ZEDJ 2500/9-270-270-40 | 2500 | 9 | - | XAD 150-250/2000 270HP | SD 150-250/2000 270HP | - | CDL(F)64-50/40HP |
| ZEDJ 2500/10-340-340-40 | 2500 | 10 | - | XAD150-315/2500 340HP | SD 150-315/2500 340HP | - | CDL(F)64-50/40HP |
| ZEDJ 2500/12-430-410-40 | 2500 | 11-12 | - | XAD150-315/3150 430HP | SD 150-315/3150 410HP | - | CDL(F)64-60-2/40HP |

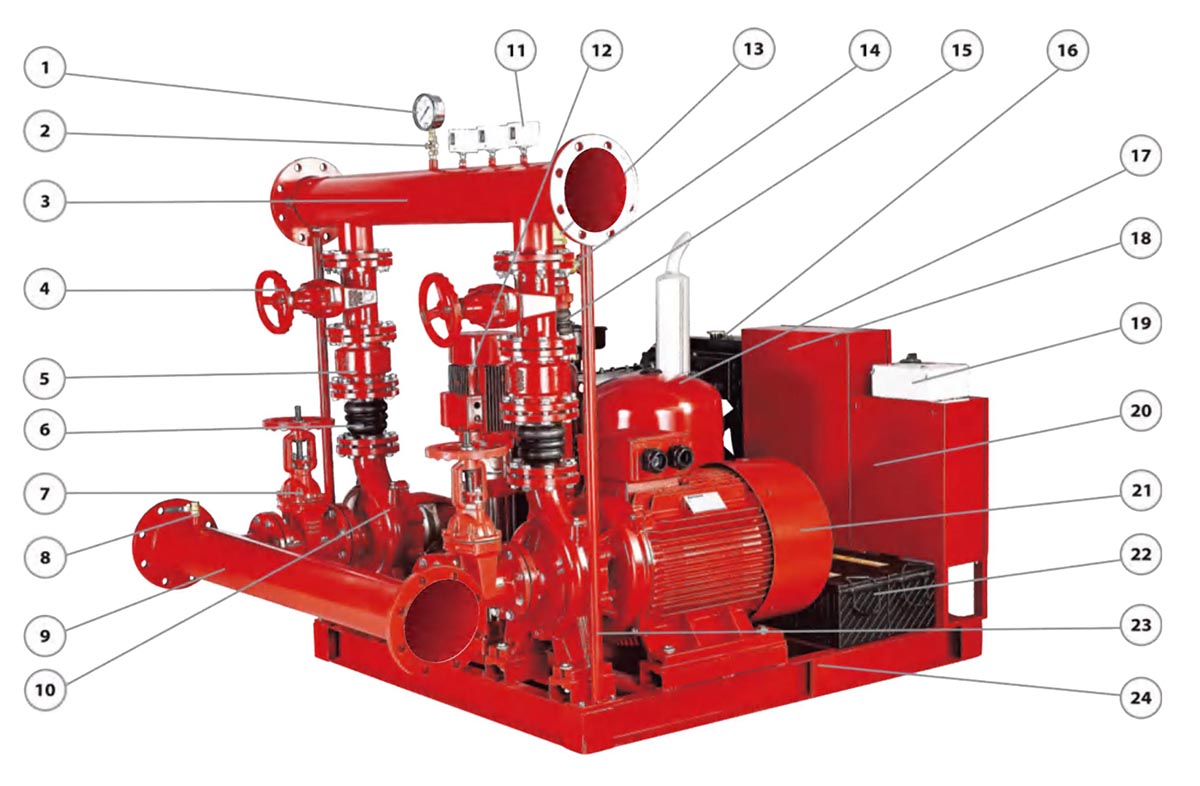

| NO. | Description | Material |
| 1 | Pressure gauge | There are 0-16 |
| 2 | Safety valve | Brass |
| 3 | Pressure pipeline | Carbon steel |
| 4 | Gate valve | Malleable iron |
| 5 | Check valve | Malleable iron |
| 6 | Flexible connection | Rubber |
| 7 | OS&Y valve | Malleable iron |
| 8 | Safety valve | Brass |
| 9 | Suction line | Carbon steel |
| 10 | Diesel pump | Backup power supply |
| 11 | Pressure switch | There are 0-16 |
| 12 | Jockey-pump | Backup power supply |
| 13 | Jockey check valve | Brass |
| 14 | Jockey shut-off valve | Brass |
| 15 | Flexible connection | Rubber |
| 16 | Diesel engine | Internal combustion |
| 17 | Pressure tank | Cast iron / EPDM diaphragm |
| 18 | Electrical controller | Direct start/Star-delta |
| 19 | Jockey controller | Direct start |
| 20 | Diesel controller | Direct start |
| 21 | Electric pump | Main source |
| 22 | Accumulator | Primary/Back up |
| 23 | Support rod | Cast iron |
| 24 | Base | Cast iron |
| Pump flow rate | Minimum pipe diameters (nominal) | ||
| GPM | m³/h | Suction | Dismiss |
| 25 | 6 | 1"-DN25 | 1"-DN25 |
| 50 | 11 | 11/2"-Dn40 | 11/4"-DN32 |
| 100 | 23 | 2"-DN50 | 2"-DN50 |
| 150 | 34 | 21/2"-DN65 | 21/2"-DN65 |
| 200 | 45 | 3"-DN80 | 3"-DN80 |
| 250 | 57 | 4"-DN100 | 3"-DN80 |
| 300 | 68 | 4"-DN100 | 4"-DN100 |
| 400 | 91 | 4"-DN100 | 4"-DN100 |
| 450 | 102 | 5"-DN125 | 5"-DN125 |
| 500 | 114 | 5"-DN125 | 5"-DN125 |
| Pump flow rate | Minimum pipe diameters (nominal) | ||
| GPM | m³/h | Suction | Dismiss |
| 750 | 170 | 6"-DN150 | 6"-DN150 |
| 1000 | 227 | 8"-DN200 | 6"-DN150 |
| 1250 | 284 | 8"-DN200 | 8"-DN200 |
| 1500 | 341 | 8"-DN200 | 8"-DN200 |
| 2000 | 455 | 10"-DN250 | 10"-DN250 |
| 2500 | 568 | 10"-DN250 | 10"-DN250 |
| 3000 | 682 | 12"-DN300 | 12"-DN300 |
| 3500 | 795 | 12"-DN300 | 12"-DN300 |
| 4000 | 909 | 14"-DN350 | 12"-DN300 |
| 4500 | 1023 | 16"-DN400 | 14"-DN350 |
| 5000 | 1136 | 16"-DN400 | 14"-DN350 |
