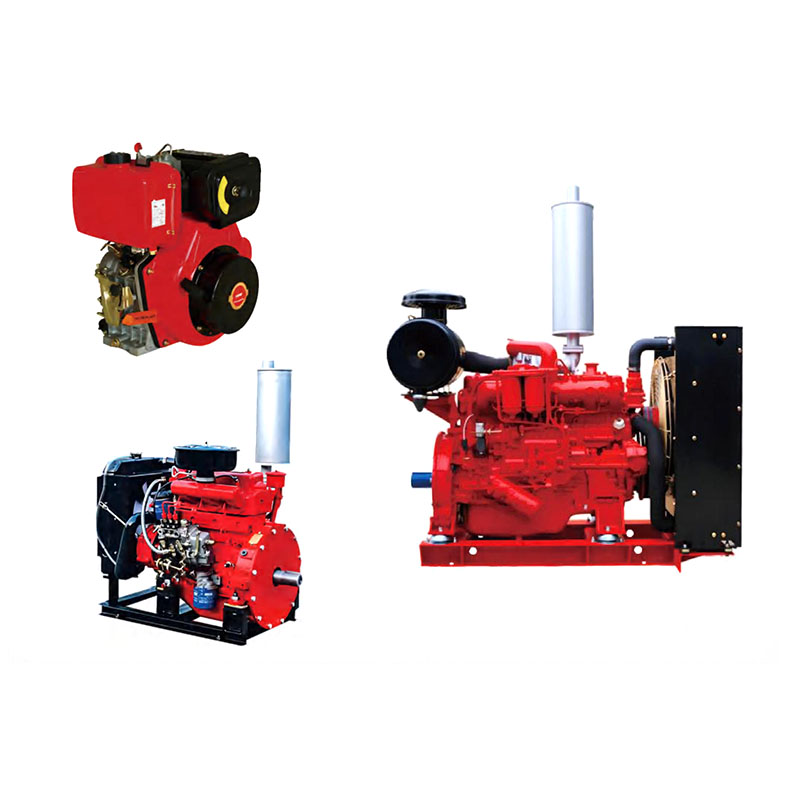

ZEN Machinery, a professional manufacturer, is pleased to present you with a high-quality D Diesel Engine for Pump. We offer two models: a single-cylinder in-line naturally aspirated air-cooled engine and a 3-6 cylinder turbocharged water-cooled engine. Both engines feature an advanced direct injection and combustion system, and are characterized by a compact design and ease of installation. Contact us for more detailed information about our products.
This high-quality D diesel engine for pumps is offered by the Chinese manufacturer ZEN Machinery. Our product complies with Chinese Class III environmental standards. We utilize noise optimization technology, which ensures quiet operation, combining high performance with low fuel consumption, making it environmentally friendly.
◆ Single-cylinder in-line naturally aspirated air-cooled engines
◆ 3-6 cylinder water-cooled engines, both turbocharged and naturally aspirated
◆ Advanced direct injection and combustion system
◆ Extremely compact dimensions, easy to assemble
◆ Noise optimization technology, increased power
◆ Compliant with China II emission standard
◆ Low fuel consumption, environmentally friendly.
| MODEL | 178 | 186 | 188 | 192 | 380 | 385 | 480 | 485 | 490N | 490 | 495 | 490BZ |
4102 (4100B) |
4105 | 4108 |
|
Тype |
4-stroke, air-cooled |
Direct injection, 4-stroke, water cooling | |||||||||||||
| Inlet type | Atmospheric | ||||||||||||||
| Bore*Stroke(mm) | 78*62 | 86*72 | 88*75 | 92*75 | 80*90 | 85*90 | 80*90 | 85*100 | 90*100 | 90*105 | 95*105 | 90*105 | 102*118 | 05*118 | 08*118 |
| Cylinder No. | 1 | 1 | 1 | 1 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Engine size | 0.296L | 0.418L | 0.456L | 0.499L | 1.357L | 1.532L | 1.8L | 2.27L | 2.54L | 2.67L | 2.977L | 2.67L | 3.857L | 4.087L | 4.324L |
| rpm |
3000 3600 |
3000 3600 |
3000 3600 |
3000 3600 |
3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Nominal kW |
3.7kw 4.0Q |
5.7kw 6.3kw |
6.6kw 7.2kw |
7.5kw 8.2kw |
20kW | 24kW | 28kW | 36kW | 42kW | 45kW | 50kW | 55kW | 62kW | 67kW | 73kW |
| Nominal HP |
5.0HP 5.5HP |
7.8HP 8.6HP |
9 HP 10HP |
10.2HP 12HP |
27HP | 32HP | 38HP | 49 HP | 58HP | 61HP | 68HP | 75HP | 85HP | 91HP | 99HP |
| Fuel consumption(g/kw.h) |
280.3 282.5 |
273.5 285.7 |
273.5 285.7 |
275 281 |
228 | 228 | 215 | 228 | 228 | 228 | 228 | 228 | 228 | 238 | 238 |
| Trigger voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 12V | 24V | 24V |
| Speed control type | Mechanical | ||||||||||||||
| Including | Radiator, Fan, Starter, Charging Alternator, Air Filter, Muffler, Stop Solenoid, PTO, Fuel Tank, Instrument Panel | ||||||||||||||
| Model | 485Z | 490NZ | 498Z | 4102Z | 4105Z | 4108Z | 490T | 4108T | 4108TL | 6102NT | 6102T | 6105BZ | 6102 TL | 6126T | 6126TL | 6126TS |
| Type | Direct injection, 4-stroke, water cooling | |||||||||||||||
| Inlet type | Turbocharging | Natural | Turbocharging | |||||||||||||
| Bore*Stroke(mm) | 85*100 | 90*100 | 98*105 | 102*118 | 105*118 | 108*118 | 90*102 | 108*125 | 108*125 | 102*118 | 102*118 | 102*118 | 102*118 | 26*130 | 126*130 | 126*155 |
| Cylinder No. | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Engine size | 2.27L | 2.54L | 3.168L | 3.857L | 4.087L | 4.324L | 2.6L | 3.8L | 3.8L | 5.78L | 5.78l | 5.78L | 5.78L | 9.726L | 9.726L | 9.726L |
| rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Nominal kW | 44KW | 50KW | 60KW | 73KW | 75KW | 83KW | 55KW | 75KW | 90KW | 110KW | 125KW | 132KW | 165KW | 200KW | 250KW | 300KW |
| Nominal HP | 60HP | 68HP | 81HP | 99HP | 102HP | 113HP | 75HP | 100HP | 125HP | 150HP | 170HP | 180HP | 225HP | 270HP | 340HP | 410HP |
| Fuel consumption(g/kw.h) | 228 | 228 | 228 | 238 | 238 | 238 | 228 | 218 | 218 | 229 | 229 | 229 | 229 | 250 | 250 | 250 |
| Trigger voltage | 12V | 12V | 12V | 24V | 24V | 24V | 12V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Speed control type | Mechanical |
Electronic |
||||||||||||||
| Including | Radiator, Fan, Starter, Charging Alternator, Air Filter, Muffler, Stop Solenoid, PTO, Fuel Tank, Instrument Panel | |||||||||||||||
