As the professional manufacturer, ZEN Machinery would like to provide you high quality DP High Pressure Diesel Water Pump.
As a professional manufacturer, ZEN is committed to providing you with high quality DP High Pressure Diesel Water Pump.
◆ Integrated device design, user only needs to connect the inlet/outlet pipe before use.
◆ Reliable and durable with safe and reliable motor and advanced pump design.
◆Low fuel consumption and air-cooled diesel engine let you enjoy its value.
◆High head, fast suction, powerful motor and vortex impeller design.
◆ Convenient maintenance, with free maintenance battery.

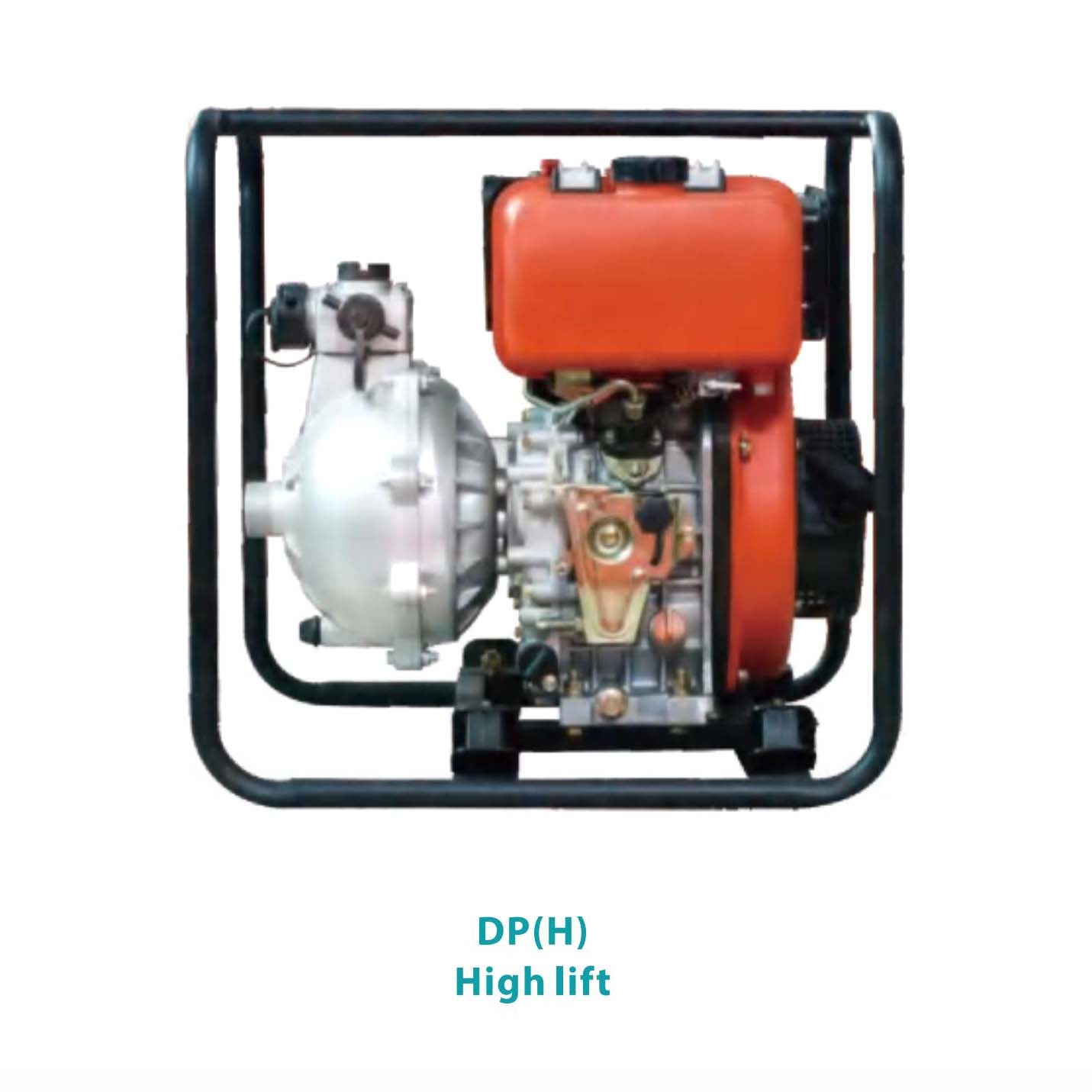

| MODEL | DP20H | DP30H |
| Diameter of the suction and discharge ports (mm) |
Inlet 50(2") Outlet 2x1.5“+1×2” |
Inlet 80(3") Outlet 1x1.5"+1×2"+1×2.5 |
| Discharge capacity(L/min) | 600 | 1000 |
| Lifting head(m) | 70 | 70 |
| Suction head(m) | 8 | 8 |
| Filling time (s/m) | 180 | 200 |
| Rotational speed(rpm) | 3600 | 3600 |
| Engine | 178F | 186FA |
| Power(kw) | 4.0 | 6.6 |
| Volume(L) | 0.296 | 0.418 |
| Fuel tank capacity (L) | 3.5 | 5.5 |
| Rotational speed(rpm) | ≤275 | ≤275 |
| Starting system | Manual or electric start | |
| Packing size(mm) | 570x465×560 | 660x480x610 |
| Mass netto(kg) | 50 | 65 |

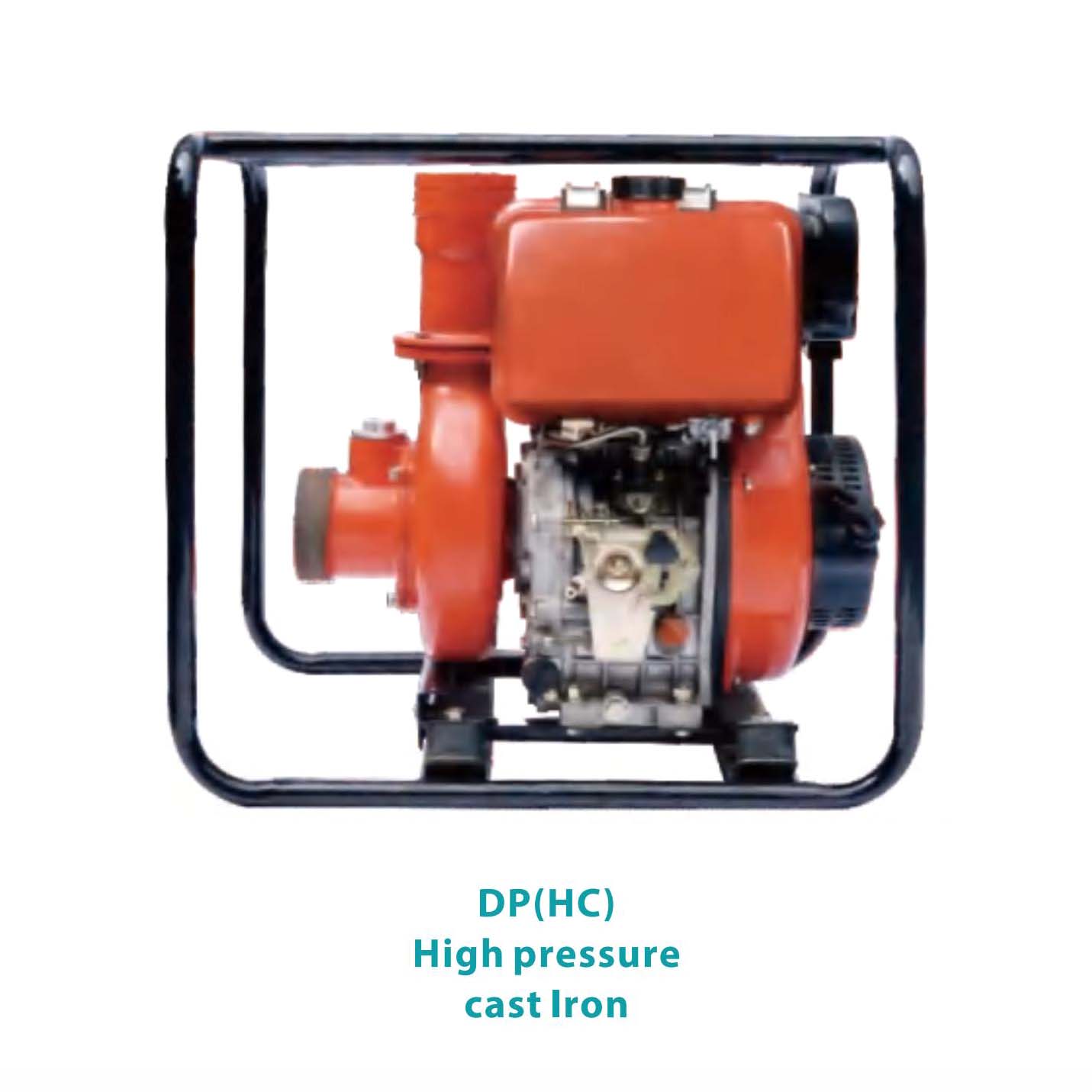

| MODEL | DP20HC | DP30HC |
| Diameter of the suction and discharge ports (mm) | 50(2") | 80(3") |
|
Discharge capacity (L/min) |
500 | 700 |
| Lifting head(m) | 75 | 75 |
| Suction head(m) | 8 | 8 |
| Filling time (s/m) | 120 | 180 |
| Rotational speed(rpm) | 3600 | 3600 |
| Engine | 178F | 186FA |
| Power(kw) | 4.0 | 6.6 |
| Volume(L) | 0.296 | 0.418 |
| Fuel tank capacity (L) | 3.5 | 5.5 |
| Rotational speed(rpm) | ≤275 | ≤275 |
| Starting system | Manual or electric start | |
| Packing size(mm) | 457×447×557 | 650×478x605 |
| Mass netto(kg) | 47 | 66 |
