ZEN Machinery high quality DP SPA Pumps are recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the materials from which the pump is made. The pump of this series can operate continuously. It is suitable for small pools, circulation filters for mariculture, recycling water in baths and recycling water in spa equipment, etc. d. It is easy to operate and maintain.

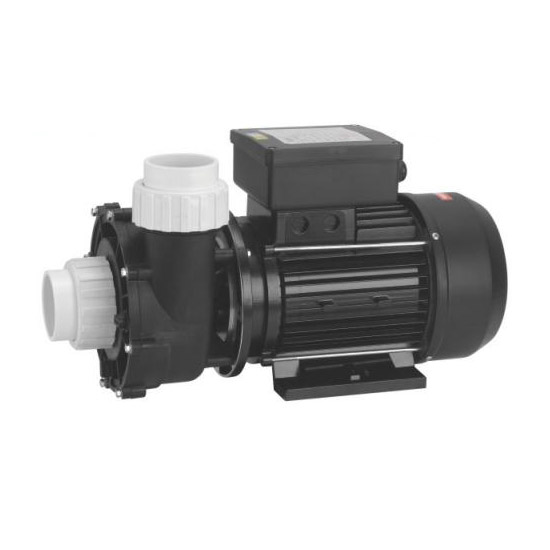

(SPA pump)
(DP series)
● Protection input: IPX5
● MEC90
● Sundant operations
● level f
● Low vibrations
● overload protection
● excellent.
● House of the anode oxidation electric motor
● Large consumption
● high -quality mechanical seal to protect against chemicals in the pool
| Model | Power |
Stress/frequency V/Hz |

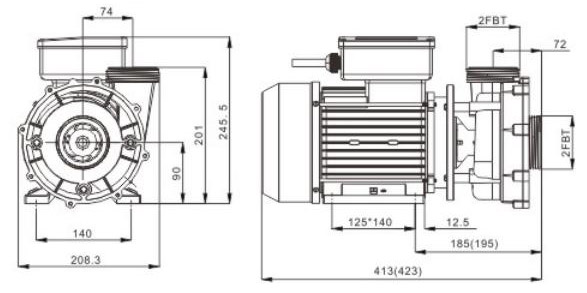

Max. Flow | Max | Installation size | G.W | The size of the package |
The amount of loading (Qty/20') |
| L/min | Plain | mm | kg | mm | ||||
| DP1500 | 1500W/2.0HP | 220-240V/50Hz | 640 | 13 | 60.3 | 13 | 460x250x310 | 1085 |
| DP1800 | 1800W/2.5HP | 700 | 14.5 | 14.5 | ||||
| DP2200 | 2200W/3.0HP | 750 | 16 | 15.5 | ||||
| DP3000 | 3000W/4.0HP | 850 | 18 | 18 | ||||
| DP1500II | 1500W/2.0HP | 640 | 13 | 13.8 | ||||
| 250W/0.35HP | 310 | 3 | ||||||
| DP1800II | 1800W/2.5HP | 700 | 14.5 | 15.3 | ||||
| 400w / 0.5HP | 350 | 3.5 | ||||||
| DP2200II | 2200W/3.0HP | 750 | 16 | 16.3 | ||||
| 450W/0.6HP | 380 | 4.5 |
