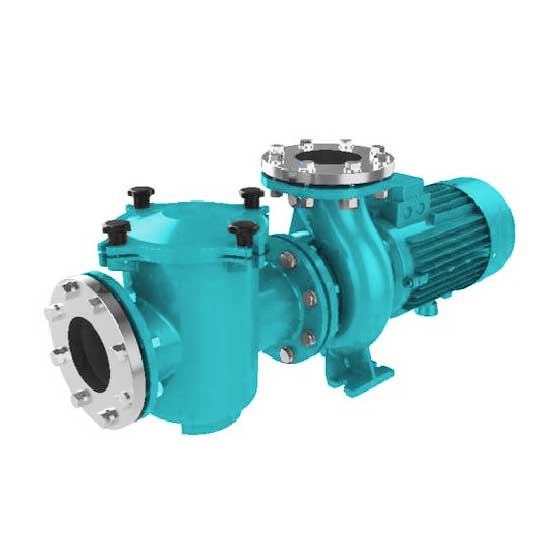

ZEN Machinery high quality NF Swimming Pool Pump is a vital component for maintaining pool water quality. It is responsible for circulating water, filtering debris and pollutants, and ensuring that pool water remains clean and safe for swimmers.
| 100 | NF | 2 | 5.5 |
| Water outlet size | Water pump type | Two pole motor | Power |
| Outlet Size (mm) | Pump Type | Two pole motor | (KW) |
| Power | 2.2-11KW |
| Poles/Poles | 2 |
| Caliber/Discharge | DN100-125 |
| Max. Flow/Max flow rate | 250m³/h |
| Max.pressure/Max head | 25m |
|
TYPE TYPE |
Voltage Voltage (V) |
Power | Outlet |
Rating. Flow Q.rated (m³/h) |
Nominal head H.rated(m) |
Max. Flow Q.max(m³/h) |
Max. Effort H.max (m) |
Weight G.W. (kg) |
Parcel size (cm) |
||
| (KW) | (HP) | (inch) | (mm) | ||||||||
| 100NF2-4 | 3Ph/380V | 4 | 5.5 | 4” | 100 | 90 | 10 | 118 | 17 | 110 | 109*36*54 |
| 100NF2-5.5 | 3Ph/380V | 5.5 | 7.5 | 4” | 100 | 60 | 15 | 144 | 18.5 | 131 | 117*40*56 |
| 100NF2-7.5 | 3Ph/380V | 7.5 | 10 | 4” | 100 | 80 | 15 | 155 | 19.6 | 136 | 117*40*56 |
| 150NF2-11 | 3Ph/380V | 11 | 15 | 6” | 150 | 100 | 20 | 252 | 25 | 166 | 117*40*56 |
