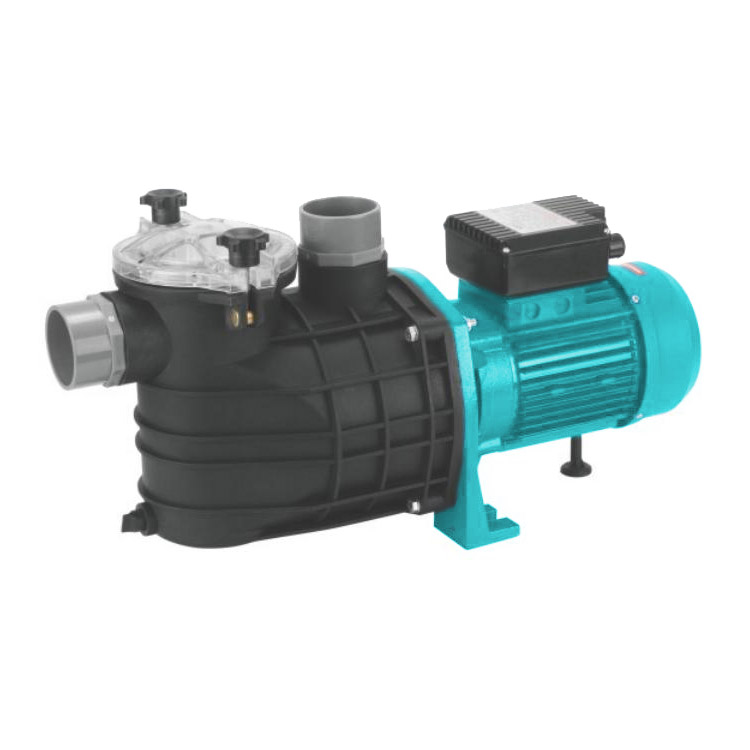

ZEN Machinery high quality SCP4 Swimming Pool Pumps are single-stage centrifugal pumps with built-in filter suitable for medium and commercial pools. Silent operation thanks to the excellent internal flow design, which reduces hydraulic noise. An enlarged filter basket increases the intervals between cleanings; a transparent cover allows for quick and easy inspection.
(Pump for the pool)
(CP series)
● IPX 5
● Sundant operations
● Consider the design
● level f
● fluid temperature ≤ 60 ° C
● They can resist chemicals in the pool.
● excellent.
● House of the anode oxidation electric motor
● overload protection
● huge professional filters that reduce the cleanliness of service
● Raise the base of the pump to keep the pump away from the water or a humid working environment
● Installation of pumps
|

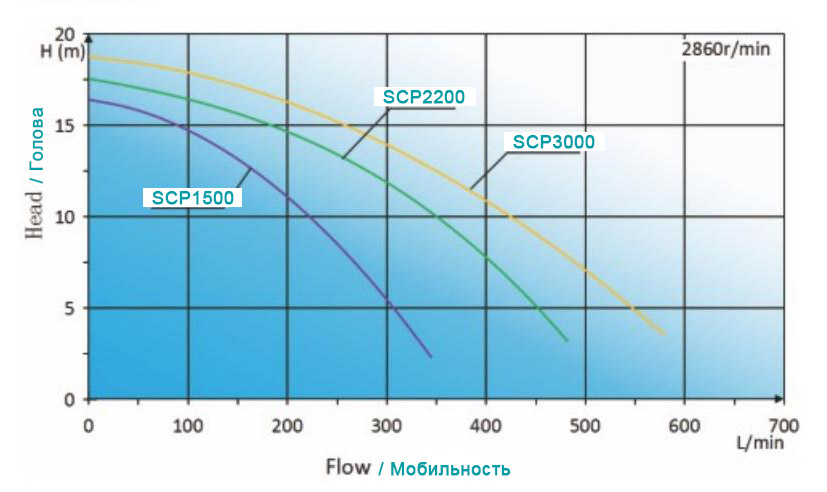

Model |
CP1500/1500-3P | CP2200/2200-3P | CP3000 |
| L(mm) | 558 | 568 | 587 |
| Model | Power |
Stress/frequency V/Hz |
Max. Flow | Max | Self -consuming | G.W | The size of the package |
The amount of loading (Qty/20') |
| L/min | Plain | kg | mm | |||||
| SCP1500 | 1500W/2.0HP | 220-240V/50Hz | 350 | 17 | 3 | 18.6 | 610x270×370 | 475 |
| SCP2200 | 2200W/3.0HP | 220-240V/50Hz | 420 | 18 | 3 | 19.5 | ||
| SCP3000 | 3000W/4.0HP | 220-240V/50Hz | 500 | 18.5 | 3 | 22.8 |
★ Select a timer, an additional timer is certified that corresponds to certification
