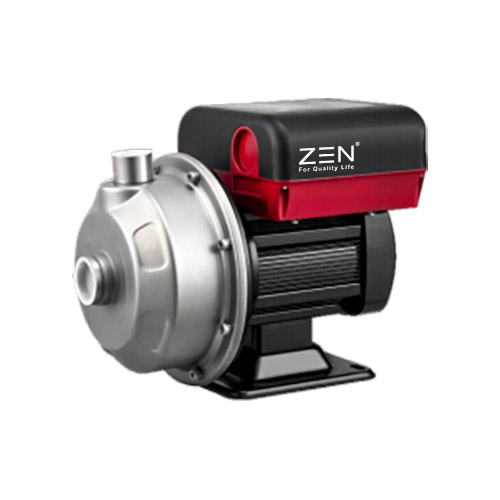

ZEN high quality Smsa Permanent Magnet Frequency Conversion Stainless Steel Circulation Pump is suitable for a variety of scenarios, commercial living spaces, flat floors, villas, etc. d. They can provide 40% energy savings, provide you with the most comfortable feeling of water, even if the bathroom, kitchen or geothermal garden has water at the same time, they can still work efficiently, steady water.

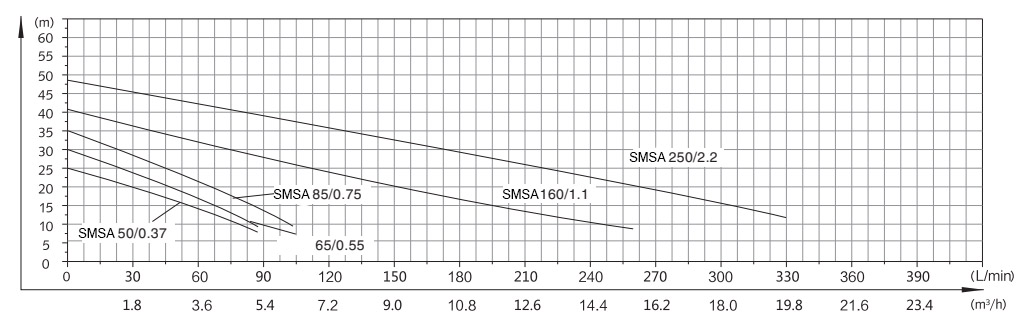

| Model |
Power Range (w) |
Max. Effort (m) |
Rating. Flow (m) |
Max. Flow (m³/h) |
Rating. Flow (m³/h) |
Max. Speed r.p.m |
Voltage e(V ) |
Frequency (Hz) |
Inlet; Exit (inch) |
| SMSA50/0.37 | 450 | 25 | 16 | 85/5 | 50/3 | 3200 | 220±20% | 50/60 | 1¼" /1" |
| SMSA65/0.55 | 550 | 30 | 16 | 85/5 | 65/4 | 3500 | 220±20% | 50/60 | 1¼" /1" |
| SMSA85/0.75 | 750 | 35 | 16 | 100/6 | 85/5 | 3700 | 220±20% | 50/60 | 1¼" /1" |
| SMSA160/ 1.1 | 1100 | 42 | 18 | 260/16 | 160/10 | 4500 | 220±20% | 50/60 | 1½" /1¼" |
| SMSA250/2.2 | 2200 | 47 | 22 | 330/20 | 250/15 | 4400 | 220±20% | 50/60 | 2" /1¼" |
Water supply
Water filter
Pressure
Hotel under pressure
Industrial pressure
Industry helps
Cleaning system
High Voltage Flushing System
Fire system
Car washing equipment
Industrial transport of liquids
Refrigeration and air conditioning system
Boiler power supply
Condensation system and cooling tower
Machine cooling and lubrication system
Water treatment
Ultrafiltration system
Reverse osmosis system
Distillation system
Separator
Pool
Irrigation
Regional irrigation
irrigation
Drip irrigation
Gun irrigation

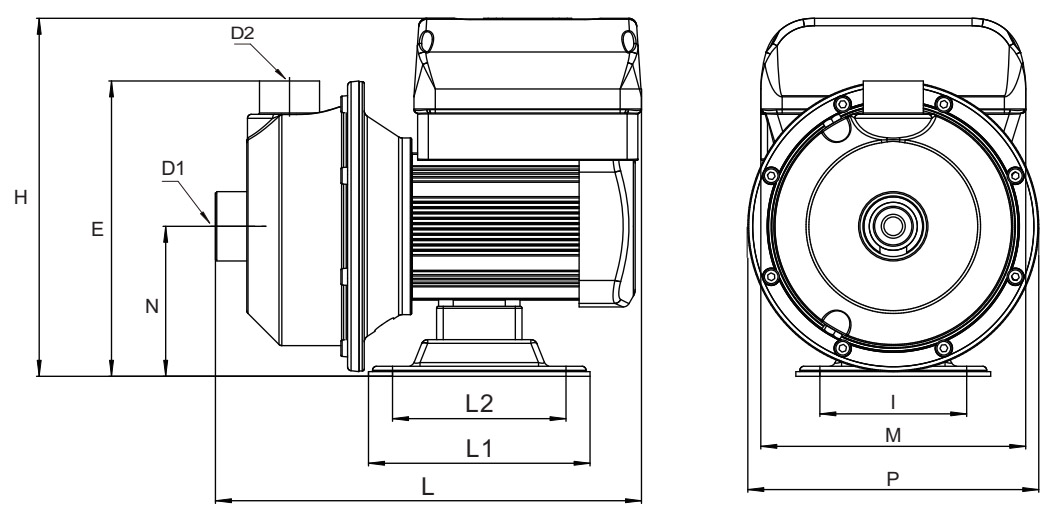

| Model | D1 | D2 | L | H | N | E | L1 | L2 | I | P | M | G.W(kg) |
| SMSA50/0.37 | 1¼" | 1" | 309 | 266 | 110 | 222 | 166 | 130 | 110 | 198.5 | 218 | 8.5 |
| SMSA65/0.55 | 1¼" | 1" | 309 | 266 | 110 | 222 | 166 | 130 | 110 | 198.5 | 218 | 8.5 |
| SMSA85/0.75 | 1¼" | 1" | 309 | 266 | 110 | 222 | 166 | 130 | 110 | 198.5 | 218 | 9 |
| SMSA160/1.1 | 1½" | 1¼" | 320 | 269 | 112.5 | 222 | 166 | 130 | 110 | 198.5 | 218 | 10.5 |
| SMSA250/2.2 | 2" | 1¼" | 359 | 320 | 117 | 231 | 226 | 176 | 150 | 224 | 218 | 17 |
Engine
• Fully enclosed, fan-cooled, two-pole permanent magnet IE4 motor
• Housing class: IP44
• Insulation class: F
• Voltage: 180V ~ 260V
Working conditions
• Liquid temperature from 0°C to + 70°C
• Ambient temperature from 0°C to + 40°C
• Liquid pH 6.5 ~ 8.5
• Particles < 0.2 mm
