High quality ZPI Permanent Magnet Variable Frequency Silent Pressure Pump is offered by ZEN Machinery, a professional manufacturer in China. It is suitable for a wide range of application scenarios, including whole-housepressurization for villas and apartment buildings, pressurization of water tank pipelinesand tap water pipelines, pressurization support for solar water heaters and boilers,irrigation for gardens and vegetable greenhouses, as well as matching with waterpurifier equipment.
ZEN Machinery, a professional manufacturer and supplier in China, delivers the ZPI Permanent Magnet Variable Frequency Silent Pressure Pump with intelligent control, ultra-quiet performance, and energy-efficient operation for stable water pressurization across residential and commercial applications.

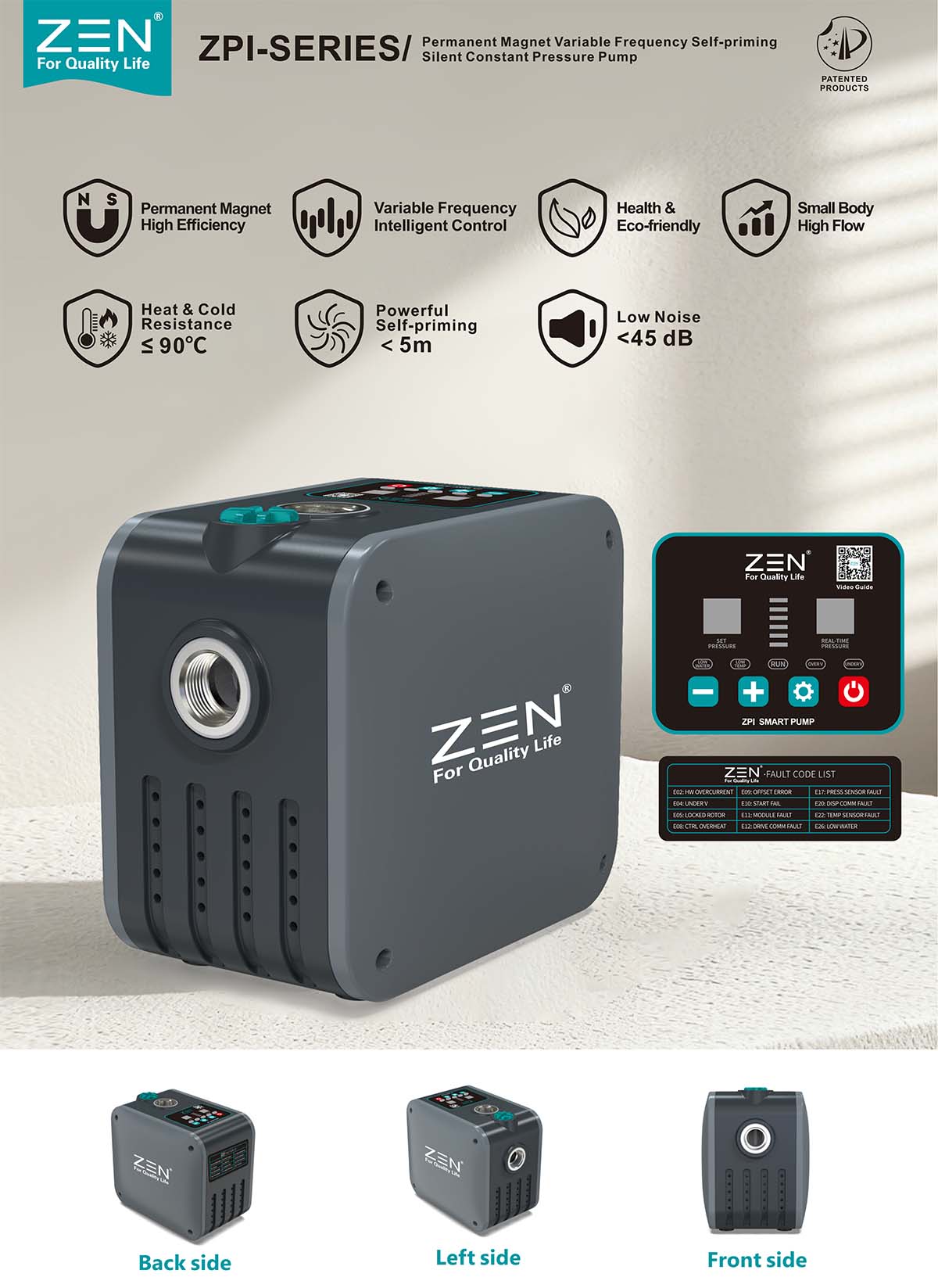

1. Permanent Magnet High Efficiency;
2. Variable Frequency Intelligent Control;
3. Health and Eco-friendly;
4. Small Body High Flow;
5. Heat & Cold Resistance≤90°C；
6. Powerful Self-priming＜5m；
7. Low Noise <45dB
|
Parameter |
ZPI 450 |
ZPI 650 |
|---|---|---|
| Input Power Supply | 180V~240V 50Hz/60Hz | 180V~240V 50Hz/60Hz |
| Power | 430W | 630W |
| Max Flow | 4.3 m³/h | 5.5 m³/h |
| Rated Flow | 2.0 m³/h | 2.0 m³/h |
| Max Head | 33 m | 43 m |
| Rated Head | 20 m | 30 m |
| Max Ambient Temp. | 40°C | 40°C |
| Max Medium Temp. | 90°C | 90°C |
| Max System Press. | 10 bar | 10 bar |
| IP Level | IPX5 | IPX5 |
| Type of Water | Clean Water | Clean Water |
| Max Speed | 6000 r/min | 6000 r/min |
| Max Suction | 5 m | 5 m |
| Inlet/Outlet | 25*25 mm | 25*25 mm |
| G.W. (KG) | 4.9 | 5.2 |
| Packing Size (CM) | 32*21.2*26.7 | 32*21.2*26.7 |
| Marking Code | ZPI 450 | ZPI 650 |
| b | DN 25 | DN 25 |
| d | DN 25 | DN 25 |
| a | 210 mm | 210 mm |
| c | 75 mm | 75 mm |
| e | 240 mm | 240 mm |
| g | 95 mm | 95 mm |
| h | 90 mm | 90 mm |
| i | 70 mm | 70 mm |
| j | 160 mm | 160 mm |
