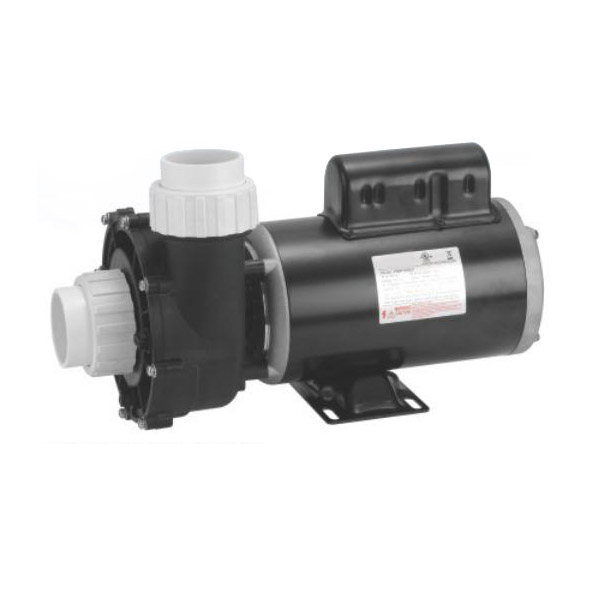

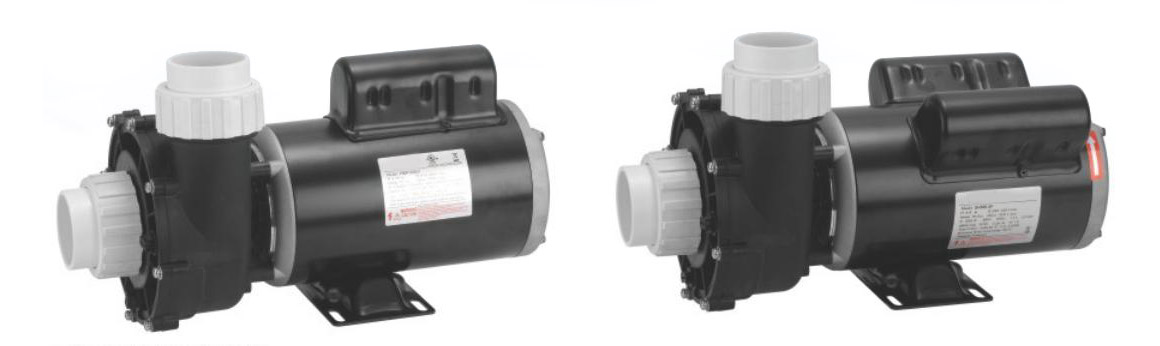

ZEN Machinery high quality SPA48 SPA Pumps are recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the materials from which the pump is made. The pump of this series can operate continuously. It is suitable for small swimming pools, circulation filters for mariculture, recycling water in baths and recycling water in spa equipment, etc. d. It is easy to operate and maintain.
(SPA pump)
(4 8 series)
● Protection input: Type 2
● MEC48
● Sundant operations
● level f
● Low vibrations
● overload protection
● excellent.
● Electrophoresis case
● Large consumption
● high -quality mechanical seal to protect against chemicals in the pool
● Environmental temperature 60 ° C
|
Model |
48ZP1002-I 48ZP1502-I 48ZP1002-II 48ZP1502-II |
48Ht2002-I 48HT2002-II |
48HT3002-I 48HT3002-II |

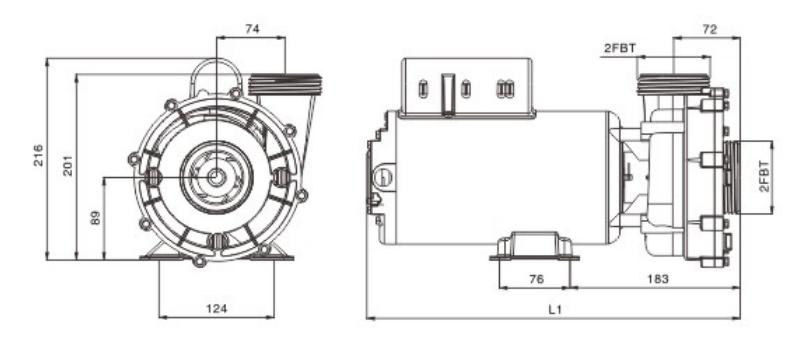

| L(mm) | 366 | 379 | 406 |
| Model | Power |
Stress/frequency V/Hz |

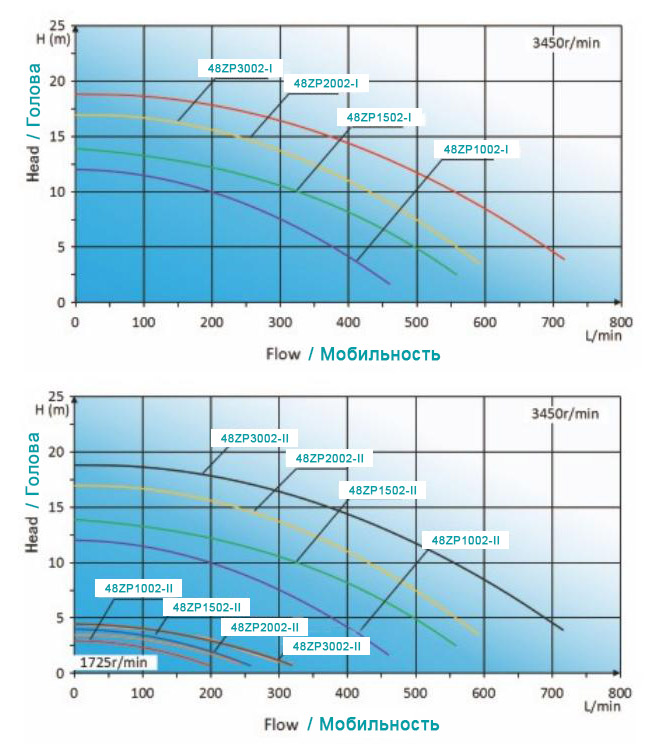

Max. Flow | Max | Installation size | G.W | The size of the package |
The amount of loading (Qty/20') |
| L/min | Plain | mm | kg | mm | ||||
| 48ZP1002-II | 750W/1.0HP | 220-240V/60Hz | 460 | 12.0 | 60.3 | 10.5 | 430x220x270 | 1130 |
| 180W/0.35HP | 200 | 3.0 | ||||||
| 48ZP1502-II | 1100W/1.5HP | 560 | 14.0 | 11.5 | ||||
| 250W/0.45HP | 245 | 3.5 | ||||||
| 48ZP2002-II | 1500W/2.0HP | 600 | 17.0 | 13.5 | ||||
| 250W/0.45HP | 260 | 4.0 | ||||||
| 48ZP3002-II | 2200W/3.0HP | 720 | 19 | |||||
| 350w/0.5HP | 320 | 4.5 | ||||||
| 48ZP1002-I | 750W/1.0HP | 460 | 12.0 | 10.5 | ||||
| 48ZP1502-I | 1100W/1.5HP | 560 | 14.0 | 11.5 | ||||
| 48ZP2002-I | 1500W/2.0HP | 600 | 17.0 | 13.5 | ||||
| 48ZP3002-I | 2200W/3.0HP | 720 | 19 |
