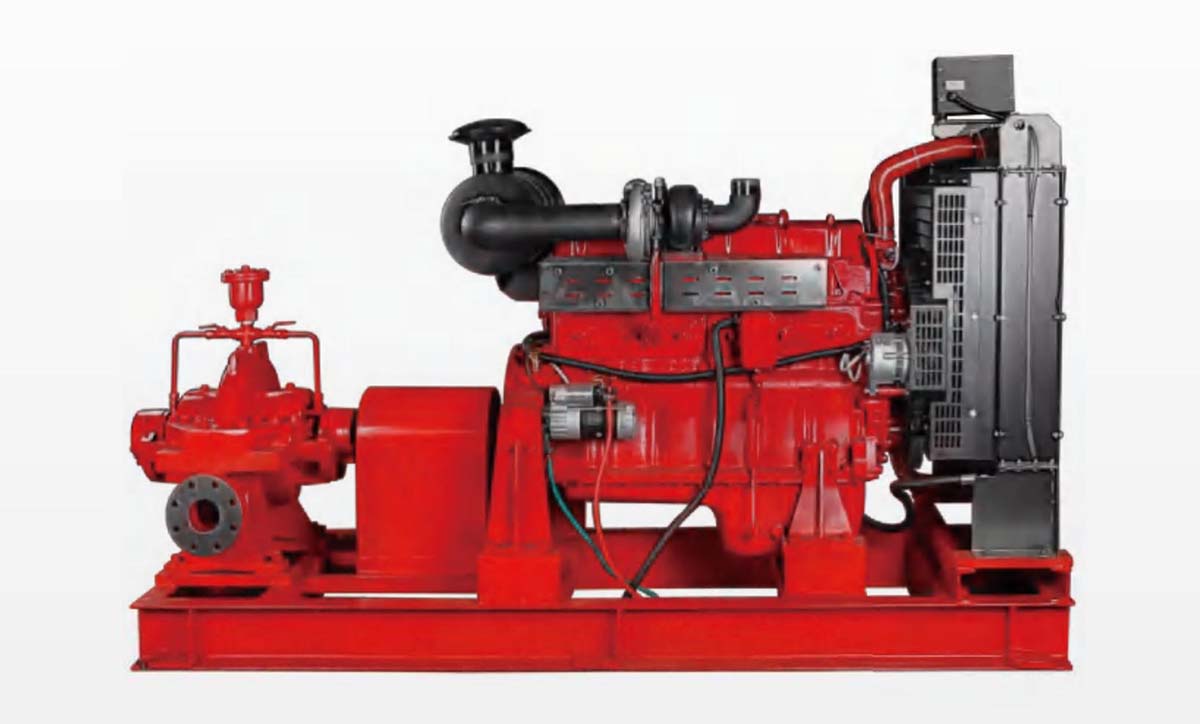

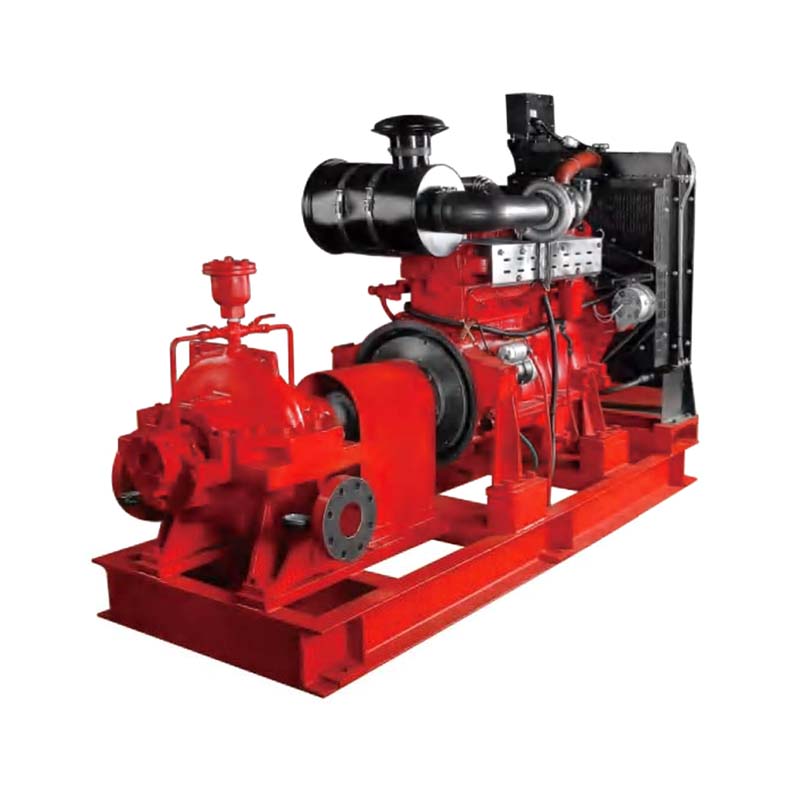

High Quality ZEN Machinery SSCD double suction split casing pump is driven by diesel engine, which has the advantages of large capacity, high efficiency and easy maintenance. The diesel engine is connected to a horizontal shaft pump using flexible couplings. To connect to vertical shaft fire pumps, bevel gears and universal joints are used. The SSCD pump is designed to supply water to standpipes, sprinkler systems, chemical suppression systems and fire hydrants in industrial and commercial applications.
As a professional manufacturer, ZEN Machinery brings you high quality SSCD Double Suction Split Casing Pump. Here are some of its features:
1. Design of axial split volute pump casing
2. Pump body with HT250 anti-corrosion coating
3. Double entry radial impeller made of AlSl 304 or HT250
4. Protective shaft sleeves in the sealing area
5.Both mechanical seals and gland packing are available.
6. Rolling bearings with lifetime grease lubrication.
7. Reliable compatibility with diesel fuel for fire safety, etc.
1. Liquid temperature from -10°C to +120°C
2. Ambient temperature range: -10°C to +50°C
3. Max. operating pressure 20 bar/continuous operation S1

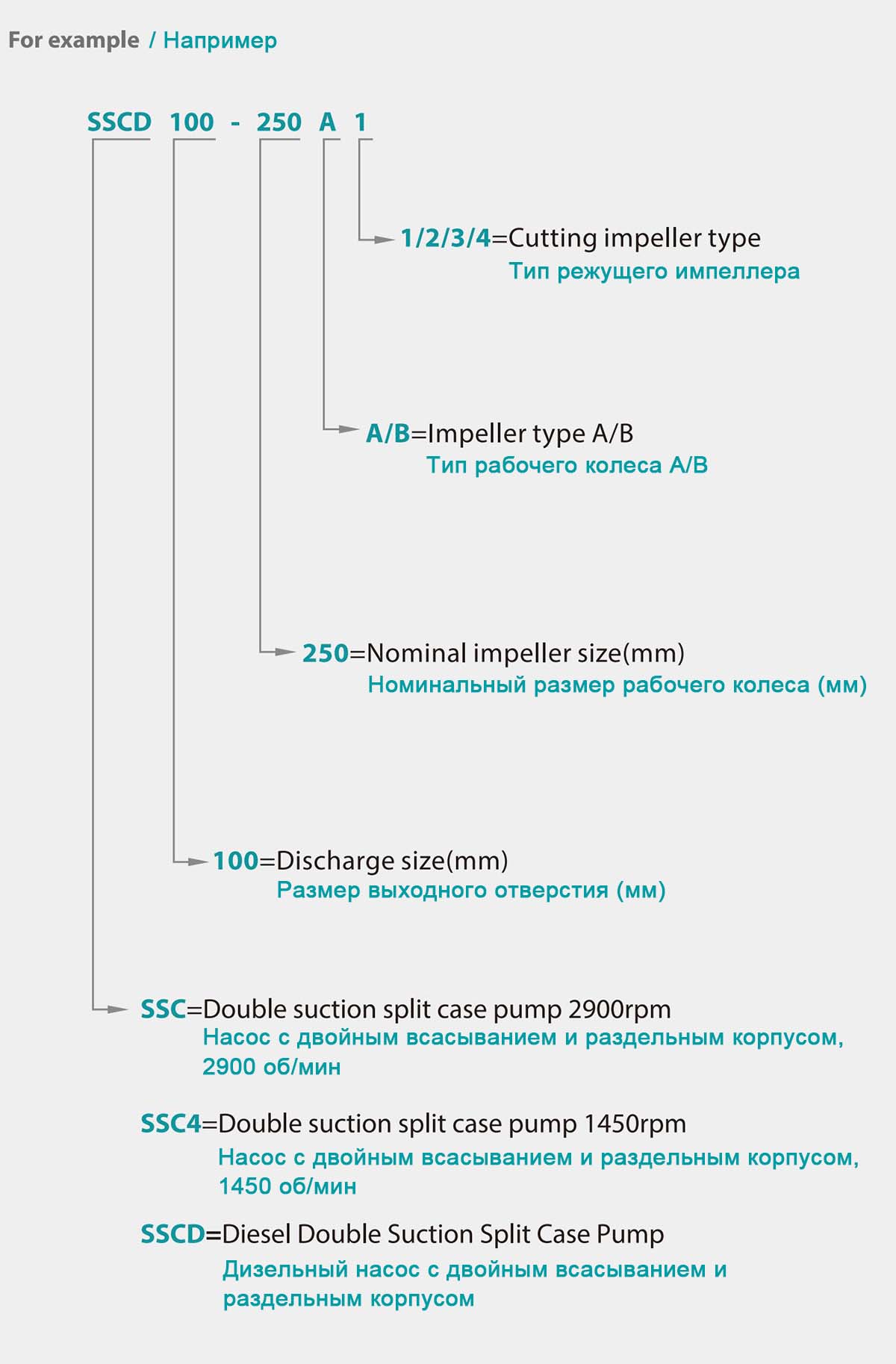

| Model | SSCD |
| Performance | 0-4500 m³/h |
| Effort | 1-185 m |
| DN | 80-500 mm |
| Speed | 3000/1500 rpm |
| Tmax. | 100 ℃ |
| Power | 2.2-1250 kW |
| Hz | 50 |
| Class | Class F |
| Operating mode |
S1 (continuous) |
| Frame |
Cast iron |
| Impeller | Cast iron/ss304 |
|
Shaft |
45#Steel/ ss304 |
| Shaft seal | Mechanical seal / Packing seal |
| Bearing | Grease lubricated rolling bearing |
