ZEN Machinery high quality WPP Bathtub Pumps are recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive to the materials from which the pump is made. The pump of this series can operate continuously. It is suitable for small swimming pools, circulation filters for mariculture, recycling water in baths and recycling water in spa equipment etc. d. It is easy to operate and maintain.
(Bath pump)
(Series WPP)
● Protection input: IPX5
● Automatic drainage
● Low vibrations
● House of the anode oxidation electric motor
● overload protection
● pneumatic switches (optional)
● Category B
● fluid temperature ≤ 50 ° C
● Mec71
|

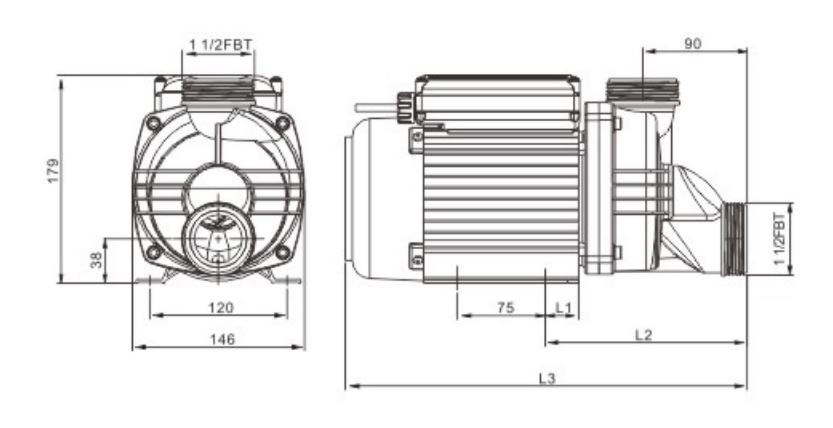

Model |
WPP450E | WPP600E WPP750E WPP900E WPP1100E | WPP1500E | WPP2000E |
| L1(mm) | 28.5 | 28.5 | 37.5 | 50 |
| L2(mm) | 172 | 172 | 181 | 193.5 |
| L3(mm) | 319 | 341 | 359 | 384 |
| Model | Power |
Stress/frequency V/Hz |
Max. Flow | Max | Installation size | G.W | The size of the package |
The amount of loading (Qty/20') |
| L/min | Plain | mm | kg | mm | ||||
| WPP450E | 450W/0.6HP | 220-240V/50Hz | 290 | 8 | 48.5/50 | 5.7 |
360x160x20 5(1PCS) 375x355x220 (2PCS) |
2455 |
| WPP600E | 600W/0.8HP | 320 | 9.8 | 6.3 | ||||
| WPP750E | 750W/1.0HP | 360 | 10.8 | 6.7 | ||||
| WPP900E | 900W/1.2HP | 400 | 11.6 | 7 | ||||
| WPP1100E | 1100W/1.5HP | 440 | 12 | 8 | ||||
| WPP1500E | 1500W/2.0HP | 450 | 14.5 | 9 | ||||
| WPP2000E | 2000W/2.7HP | 500 | 15.0 | 9.8 | 390x160x205 | 2267 |
