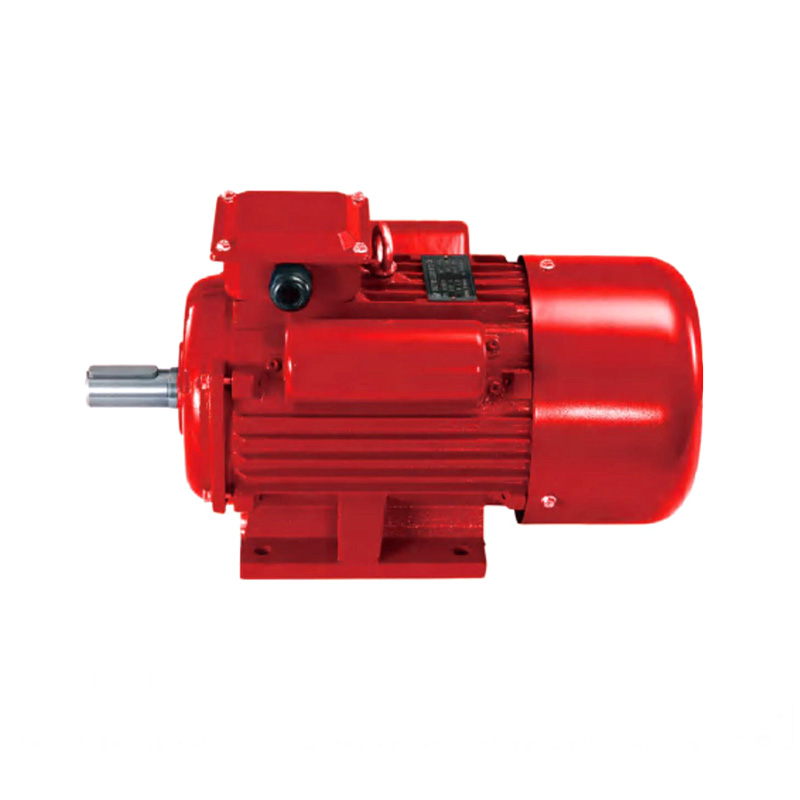

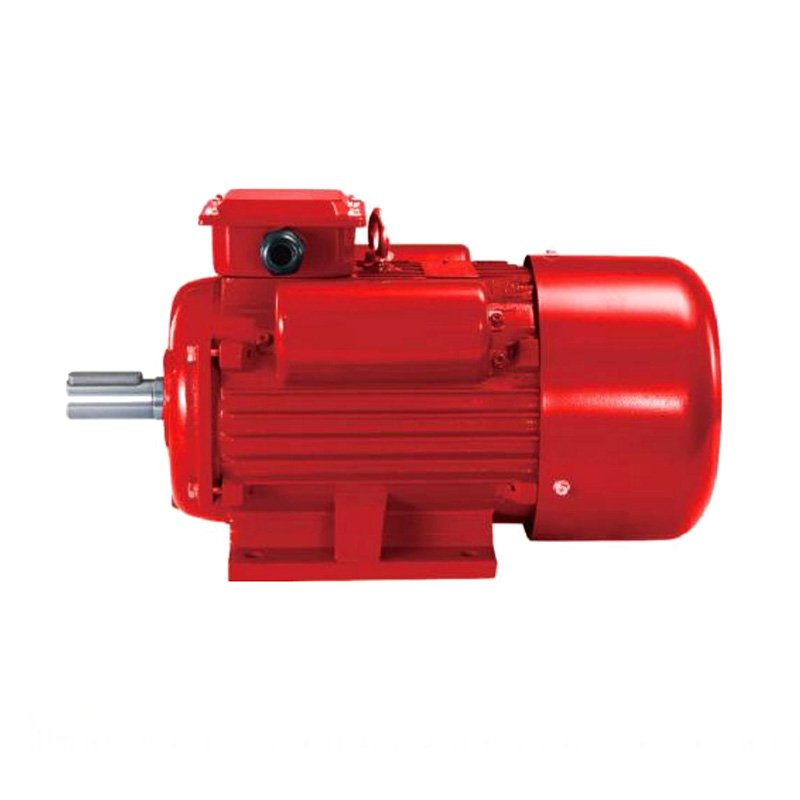

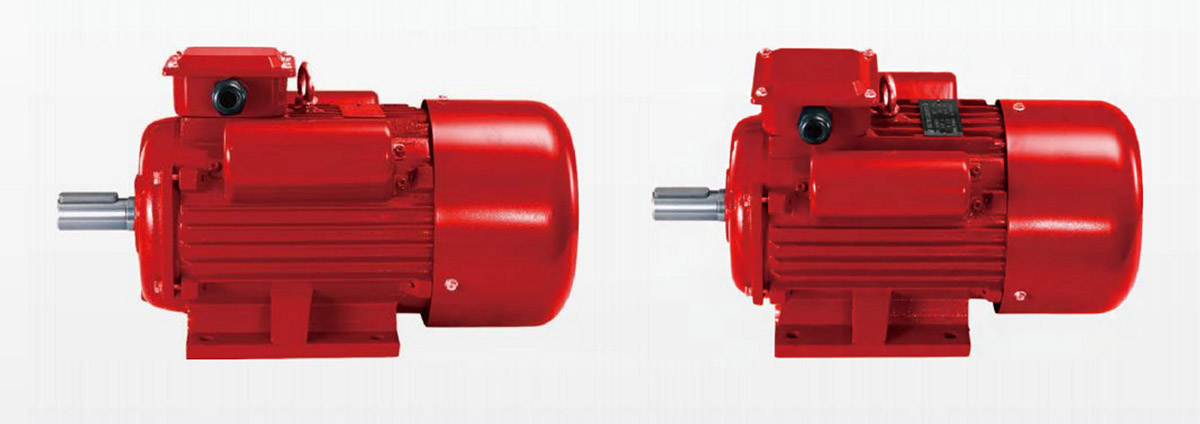

The high-quality ZEN Machinery YCL Capacitor Start Induction Motor is a type of single-phase motor suitable for small machine tools and water pumps, especially for home workshops where only single-phase power is available. These motors are designed using the latest technologies and manufactured from high-quality materials.
The high-quality YCL Capacitor Start Induction Motor is offered by the Chinese manufacturer ZEN Machinery. This motor features high performance, safe and reliable operation, an attractive appearance, ease of maintenance, and complies with IEC standards.
1. Voltage and Frequency
The standard voltage and frequency for the YCL capacitor-start asynchronous motor model are 220 V, 50 Hz. The motors will operate satisfactorily with voltage deviations of ±5% from the nominal value.
2. Cooling and ventilation
The standard cooling method is Totally Enclosed Fan Cooling (TEFC) using the LC411. Standard motors are equipped with radial plastic fans.
3. Temperature and insulation
Motor insulation class is F (155 °C), operating class is B (80 K), which increases the service life and reliability of the motor.
4. Protection class
Protection class - IP44, which means complete protection against water and dust.
5. Engine protection
The YCL asynchronous motor with capacitor start can be equipped with a PTC sensor to protect the windings and bearings from overheating.
6. Terminal box location
The terminal box can be made of plastic or steel.
7. Engine working system
The engine working system is designed for continuous operation mode S1.
8. Quality guarantee
The product is manufactured in accordance with an ISO 9001 certified quality system.
| МОДЕЛЬ | Power |
Voltage (V) |
Rated current (A) |
Скорость rpm |
Eff % |
PowerPower Factor cosφ |
Tst/Tn | Ist/ln | Tmax/Tn | |
| HP | KW | |||||||||
| YCL80a-2 | 1/2 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 2.8 | 6.5 | 1.8 |
| YCL80b-2 | 3/4 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 2.8 | 6.5 | 1.8 |
| YCL80c-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 2.8 | 6.5 | 1.8 |
| YCL90s-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 2.4 | 7.0 | 1.8 |
| YCL90L-2 | 2 | 1.5 | 220 | 12.1 | 2880 | 72 | 0.78 | 2.4 | 7.0 | 1.8 |
| YCL100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 2.1 | 7.0 | 1.8 |
| YCL112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.84 | 2.2 | 7.0 | 1.8 |
| YCL112M2-2 | 5 | 3.7 | 220 | 24.8 | 2900 | 79 | 0.86 | 2.2 | 7.0 | 1.8 |
| YCL80a-4 | 1/3 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.60 | 2.8 | 6 | 1.8 |
| YCL80b-4 | 1/2 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 2.8 | 6 | 1.8 |
| YCL80c-4 | 3/4 | 0.55 | 220 | 6.0 | 1450 | 64 | 0.65 | 2.8 | 6 | 1.8 |
| YCL90s-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.4 | 6.5 | 1.8 |
| YCL90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 2.4 | 6.5 | 1.8 |
| YCL100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.70 | 2.4 | 6.5 | 1.8 |
| YCL112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 2.2 | 6.5 | 1.8 |
| YCL132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 |
| YCL132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 |
| YCL132M-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
