Product Description

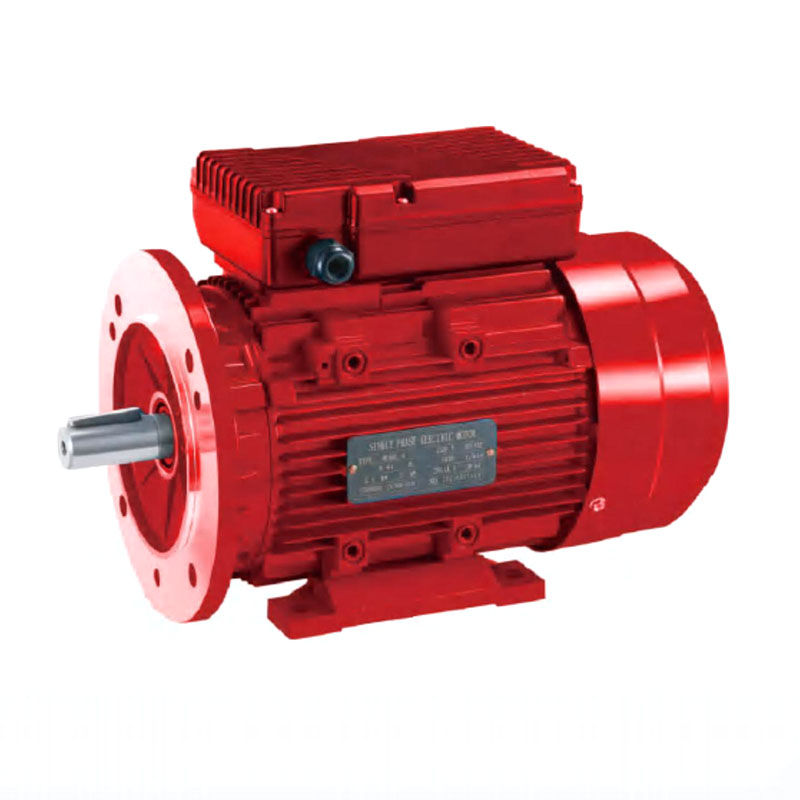

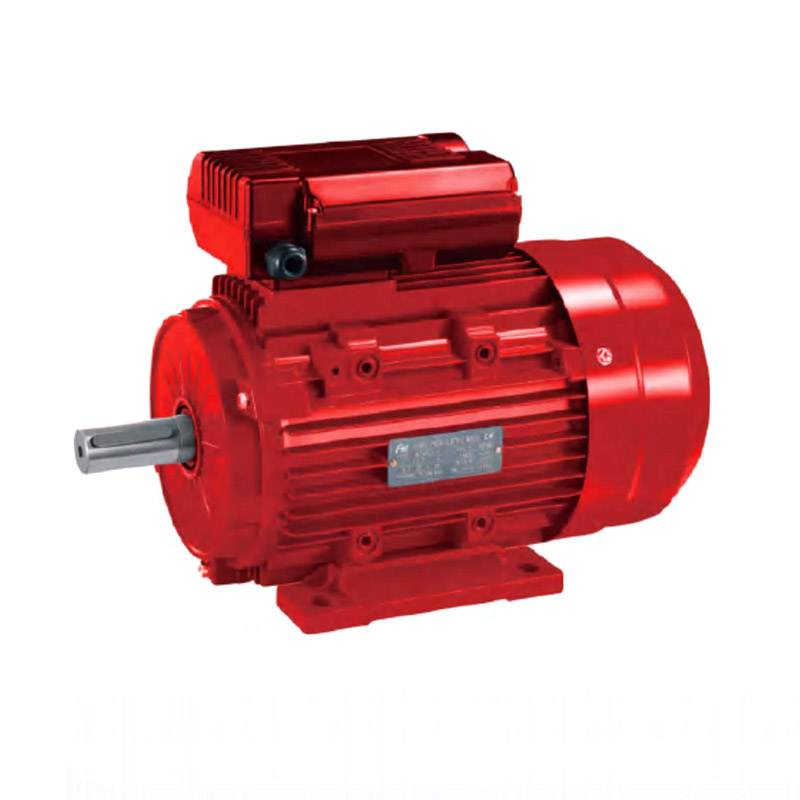

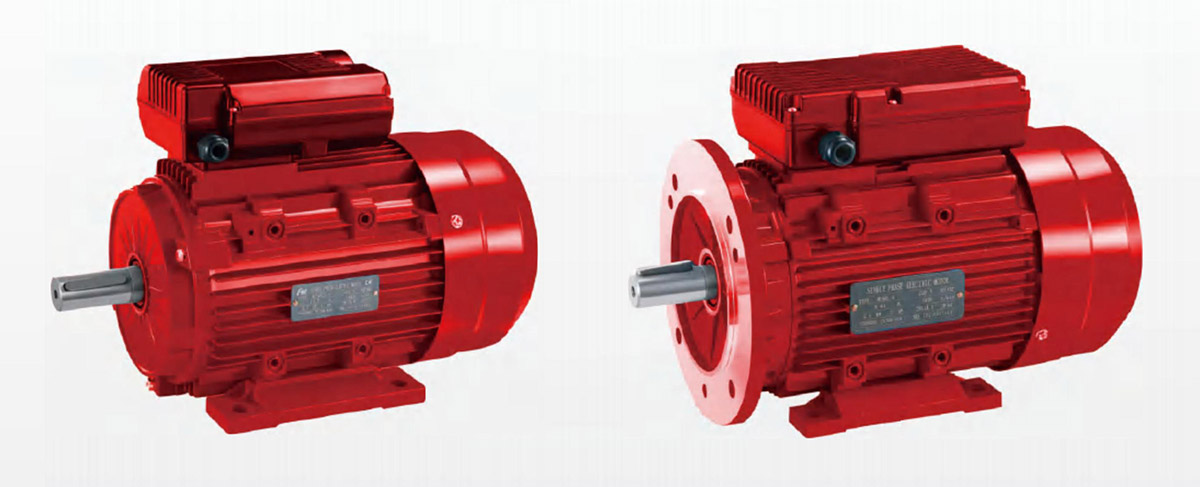

As a professional manufacturer, ZEN Machinery offers high quality YL Two Value Capacitor Induction Motor, which is widely used in air compressors, pumps, fans, refrigerators, medical devices, small-sized machines, etc., especially in single-phase power supply environments.

Specification

1. Voltage and frequency

The standard voltage and frequency for a single-phase motor are 220 V, 50 Hz. The motors will operate satisfactorily with voltage deviations of +5% from the nominal value.

2. Cooling and ventilation

The standard cooling method is totally enclosed fan-cooled (TEFC) using LC411. Standard motors are equipped with radial plastic fans.

3. Temperature and insulation

Motor insulation class is F (155 °C), operating class is B (80 K), which increases the service life and reliability of the motor.

4. Protection class

The protection class is IP44, which means complete protection against water and dust ingress.

5. Engine protection

Motors can be equipped with PTC sensors to protect the windings and bearings from overheating.

6. Terminal box location

The box can be made of plastic or steel.

7. Motor operating system

The motor operating system is designed for continuous operation mode S1.

8. Quality guarantee

The product is manufactured in accordance with an ISO 9001 certified quality system.

TECHNICAL DATA

MODEL	Power kW	Rated current (A)	speed rpm	Eff %	Power factor cosφ	Tst/Tn	LST
YL711-2	0.37	2.2	2800	67	0.92	16	1.8
YL712-2	0.55	3.9	2800	70	0.92	21	1.8
YL801-2	0.75	4.9	2800	72	0.95	29	1.8
YL802-2	1.1	7	2800	75	0.95	40	1.8
YL90S-2	1.5	9.4	2800	76	0.95	55	1.7
YL90L-2	2.2	13.7	2800	77	0.95	80	1.7
YL100L1-2	3	18.2	2800	79	0.95	110	1.7
YL112M-2	4	26.6	2850	77	0.82	175	2.2
YL132S-2	4	27.5	2800	79	0.86	180	1.7
YL132M-2	5.5	32.5	2800	81	0.95	230	1.7
YL711-4	0.25	2	1400	62	0.92	12	1.8
YL712-4	0.37	2.8	1400	65	0.92	16	1.8
YL801-4	0.55	4	1400	68	0.92	21	1.8
YL802-4	0.75	5.1	1400	71	0.92	29	1.8
YL90S-4	1.1	7.3	1400	73	0.95	40	1.7
YL90L-4	1.5	9.7	1400	75	0.95	55	1.7
YL100L1-4	2.2	13.9	1400	76	0.95	80	1.7
YL112M-4	3	18.6	1400	77	0.95	110	1.7
YL132S-4	4	27.1	1400	78	0.77	175	2.2
YL132M-4	5.5	31.2	1400	78	0.95	230	2.2
YL160L-4	7.5	57.8	1400	71	0.93	400	1.7

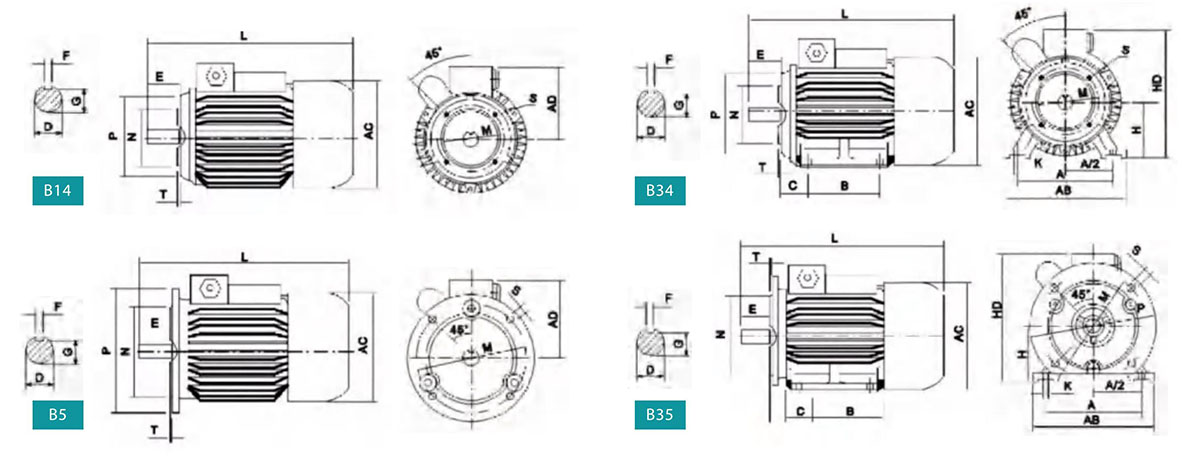

DIMENSIONS

MODEL	Mounting dimensions																						Dimensions
	A	A/2	B	C	D	E	F	G	H	K	IM B14 B34						IM B5 B35						AB	AC	AD	AE	HD	L
	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	M	N	P	R	S	T	AB	AC	AD	AE	HD	L
71	112	56	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	130	110	160	0	10	3.5	145	145	140	95	180	255
80	125	62.5	100	50	19	40	6	15.5	80	10	100	80	120	0	M6	3	165	130	200	0	12	3.5	160	165	150	110	200	295
90S	140	70	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	370
90L	140	70	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	180	185	160	120	220	400
100L	160	80	140	63	28	60	8	24	100	12	-	-	-	-	-	-	215	180	250	0	15	4	205	200	180	130	260	430
112M	190	95	140	70	28	60	8	24	112	12	-	-	-	-	-	-	215	180	250	0	15	4	245	250	190	140	300	455
132S	216	108	140	89	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	525
132M	216	108	178	88	38	80	10	33	132	12	-	-	-	-	-	-	265	230	300	0	15	4	280	290	210	155	350	565
