Buy quality ZSV Permanent Magnet Variable Frequency Stainless Steel Pressure Pump from ZEN Machinery, a professional manufacturer in China. It is widely applicable to a variety of scenarios, including well water extraction,water tower refilling and pressurization, tap water pipeline pressurization, whole-housepressurization for apartment buildings, pressurization for solar water heaters and boilersirrigation for gardens and vegetable greenhouses, aquaculture drainage, as well asmatching with water purifier equipment.

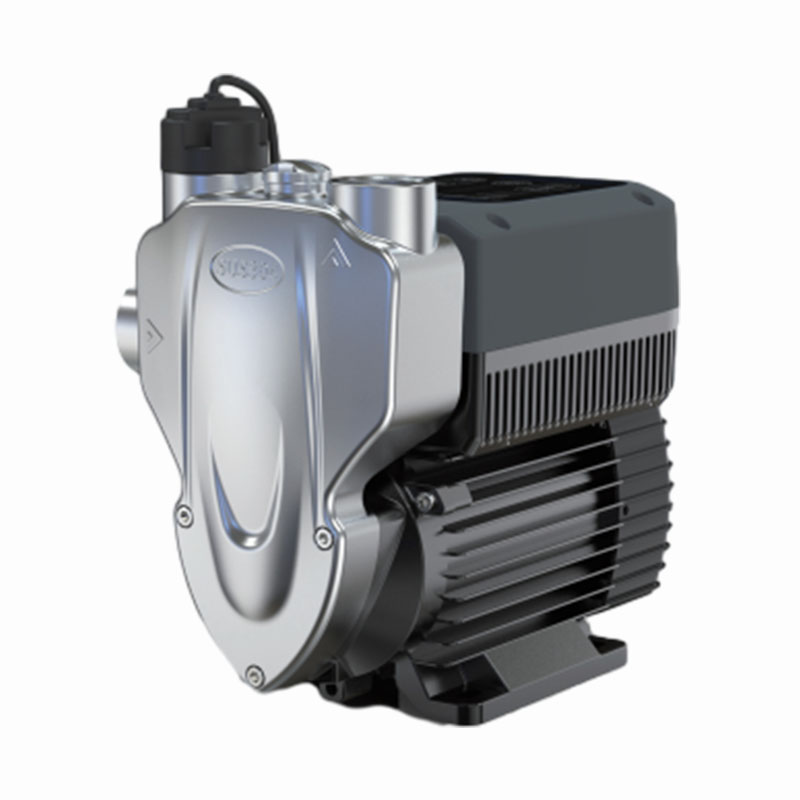

The ZSV Permanent Magnet Variable Frequency Stainless Steel Pressure Pump from ZEN Machinery, a leading China manufacturer and factory supplier, is engineered for high-efficiency water transfer and stable pressure control across residential, agricultural, and industrial applications. Designed with premium AISI 304 stainless steel and advanced variable frequency technology, this pump ensures long service life and energy savings.
1. Permanent Magnet High Efficiency;
2. Variable Frequency Intelligent Control;
3. AISI 304;
4. Heat & Cold Resistance≤100°C;
5. Powerful Self-priming＜9m;
6. Low Noise <45dB
|
Parameter |
ZSV 400 |
ZSV 600 |
ZSV 800 |
ZSV 1200 |
ZSV 1500 |
|---|---|---|---|---|---|
| Input Power Supply | 180V~240V 50Hz/60Hz | 180V~240V 50Hz/60Hz | 180V~240V 50Hz/60Hz | 180V~240V 50Hz/60Hz | 180V~240V 50Hz/60Hz |
| Power | 370W | 550W | 750W | 1100W | 1500W |
| Max Flow | 2.8 m³/h | 3.5 m³/h | 4.2 m³/h | 5.5 m³/h | 7.0 m³/h |
| Rated Flow | 1.8 m³/h | 1.8 m³/h | 2.0 m³/h | 2.5 m³/h | 3.5 m³/h |

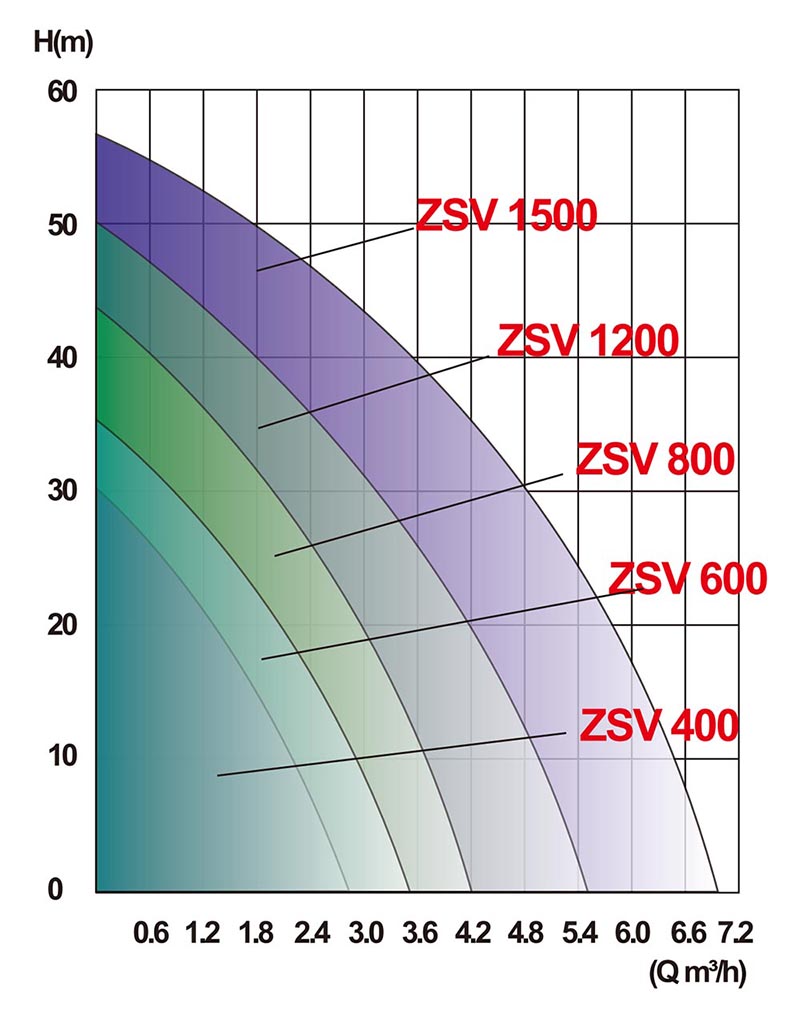

| Max Head | 30 m | 35 m | 45 m | 50 m | 55 m |
| Rated Head | 15 m | 20 m | 25 m | 30 m | 35 m |
| Max Ambient Temp. | 40°C | 40°C | 40°C | 40°C | 40°C |
| Max Medium Temp. | 100°C | 100°C | 100°C | 100°C | 100°C |
| Max System Press. | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar |
| IP Level | IPX5 | IPX5 | IPX5 | IPX5 | IPX6 |
| Type of Water | Clean water, low-viscosity liquid | Clean water, low-viscosity liquid | Clean water, low-viscosity liquid | Clean water, low-viscosity liquid | Clean water, low-viscosity liquid |
| Max Speed | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min | 3500 r/min |
| Max Suction | 9 m | 9 m | 9 m | 9 m | 9.9 m |
| Inlet/Outlet | 25*25 mm | 25*25 mm | 25*25 mm | 25*24 mm | 40*40 mm |
| G.W. (KG) | 6.5 | 6.6 | 7.05 | 7.05 | 8.1 |
| Packing Size (CM) | 28.5*20.7*29.2 | 28.5*20.7*29.2 | 28.6*20.7*29.2 | 28.5*20.7*28.2 | 29.5*20.8*30.2 |
| Marking Code | ZSV 400 | ZSV 600 | ZSV 800 | ZSV 1200 | ZSV 1500 |

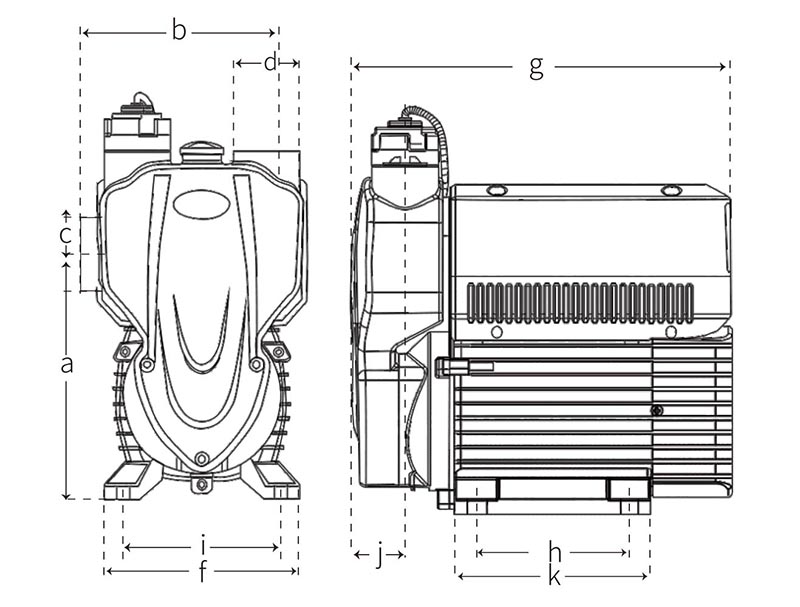

| c | DN 25 | DN 25 | DN 25 | DN 25 | DN 40 |
| d | DN 25 | DN 25 | DN 25 | DN 20 | DN 40 |
| a | 157 mm | 157 mm | 157 mm | 157 mm | 157 mm |
| b | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| e | 222 mm | 222 mm | 222 mm | 222 mm | 222 mm |
| f | 124 mm | 124 mm | 124 mm | 124 mm | 124 mm |
| g | 241 mm | 241 mm | 241 mm | 241 mm | 241 mm |
| h | 95 mm | 95 mm | 95 mm | 95 mm | 95 mm |
| i | 101 mm | 101 mm | 101 mm | 101 mm | 101 mm |
| j | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| k | 124 mm | 124 mm | 124 mm | 124 mm | 124 mm |
