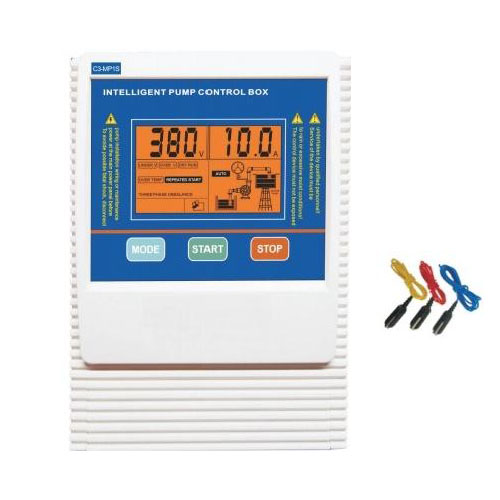

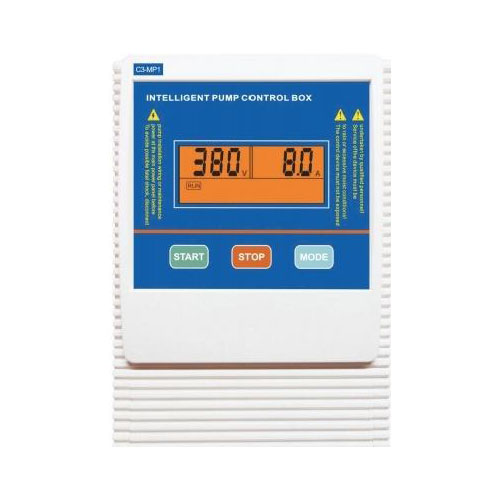

C-MP1 Intelligent Pump Controller

ZEN Machinery high quality C-MP1 Intelligent Pump Controller

Intelligent Water Pump Controller

C3-MP1 C1-MP1

C3-MP1S C1-MP1S

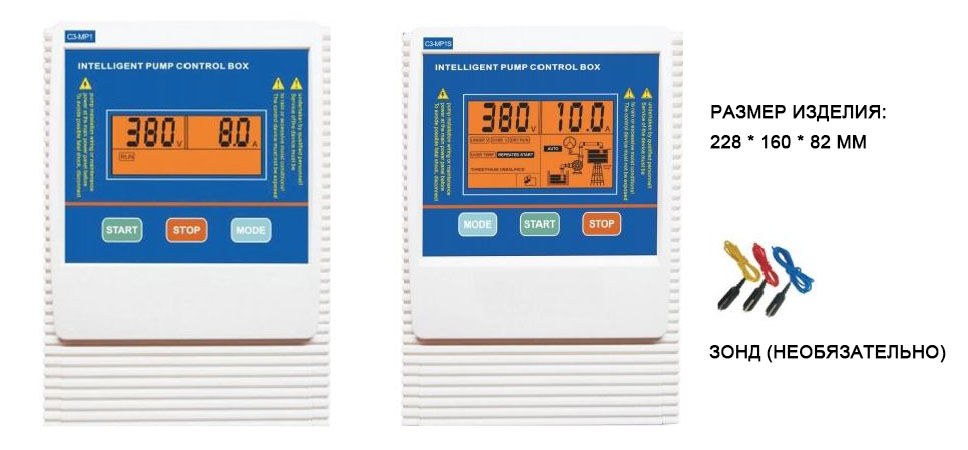

Product size: 228*160*82mm

Key Features:

Rated input voltage:

C3 - MP1 C3 - MP1S AC380V / 50HZ, three-phase

C1 - MP1 AC220V / 50HZ, single phase

Rated output power:

C3-MP1 C3-MP1S 0.75KW-4KW(1hp-5.5hp) 5.5KW-7.5KW(7.5hp-10hp) 11KW(15hp)15KW(20hp)

C1-MP1 0.37KW-2.2KW(0.5hp-3hp)

Protection function:

◆ Overload protection

◆ Low/over voltage protection

◆ engine stall protection

◆ Protection against dry operations without sensors

◆ Phase break protection (single phase without this function)

Main features:

◆ Control characteristics: pulse electrodes probes / float switches / electrical contacts pressure gauges / pressure switches

◆Features: HD liquid crystal dynamic English

◆ Control mode: manual / automatic

◆ Full protection in manual / automatic mode

◆ Five recent pump failures.

◆ Show the total operating time of the pump

◆ anti-corrosion protection of the pump shaft

◆ Calibration button

◆ scintillation command in the opposite direction of the probe line

◆ Fault warning

◆ Fast water supply when power is cut off or restored

◆Status setting

◆ Drain alarm

◆ Liquid level sensor transmission distance 200m

Protection class: IP22
