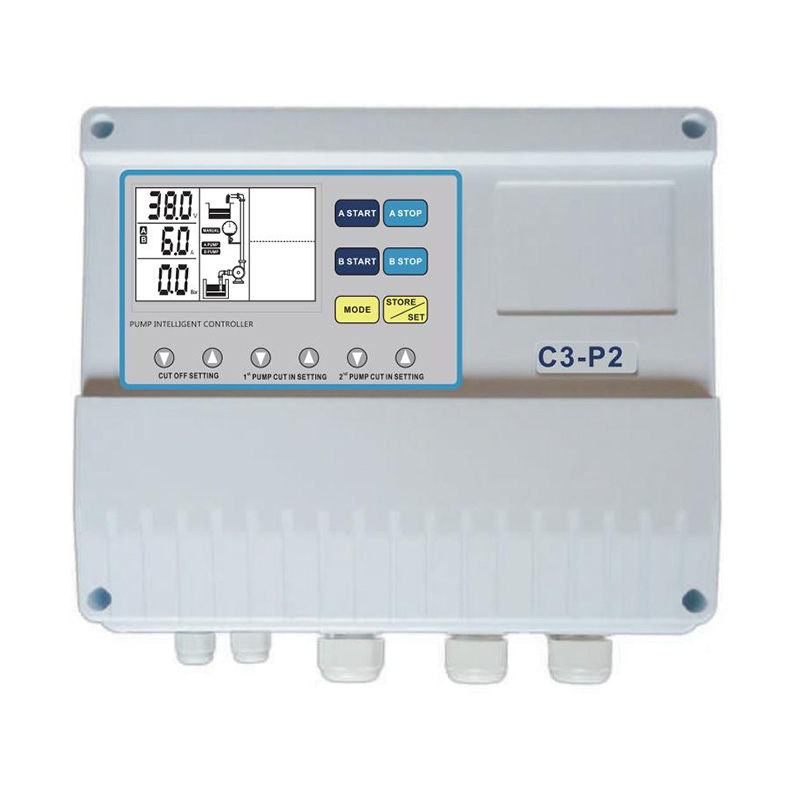

ZEN Machinery high quality C-P2 Pressure Boost Duplex Pump Controller is equipped with the following control functions: pulse electrode probe/float switch/electrical contact; pressure gauge/pressure relay; display is a dynamic LCD display in English; manual/automatic control mode, and full protection functions in both manual and automatic modes.
Double pump controller
(inflator type) C3 - P2 C1 - P2
Rated input voltage: AC380V/50HZ three-phase
Rated output power: 0.75 kW - 4 kW (1hp - 5.5 HP) 5.5 kW - 7.5 kW (7.5 HP - 10 HP) 11 kW (15 HP) s.) 15 kW (20 hp)
◆ Overload protection
◆ Low/over voltage protection
◆ engine stall protection
◆ Protection against dry operations without sensors
◆ Phase break protection (single phase without this function)
◆ Phase imbalance protection (single-phase without this function)
◆ Phase inversion protection (single-phase without this function)

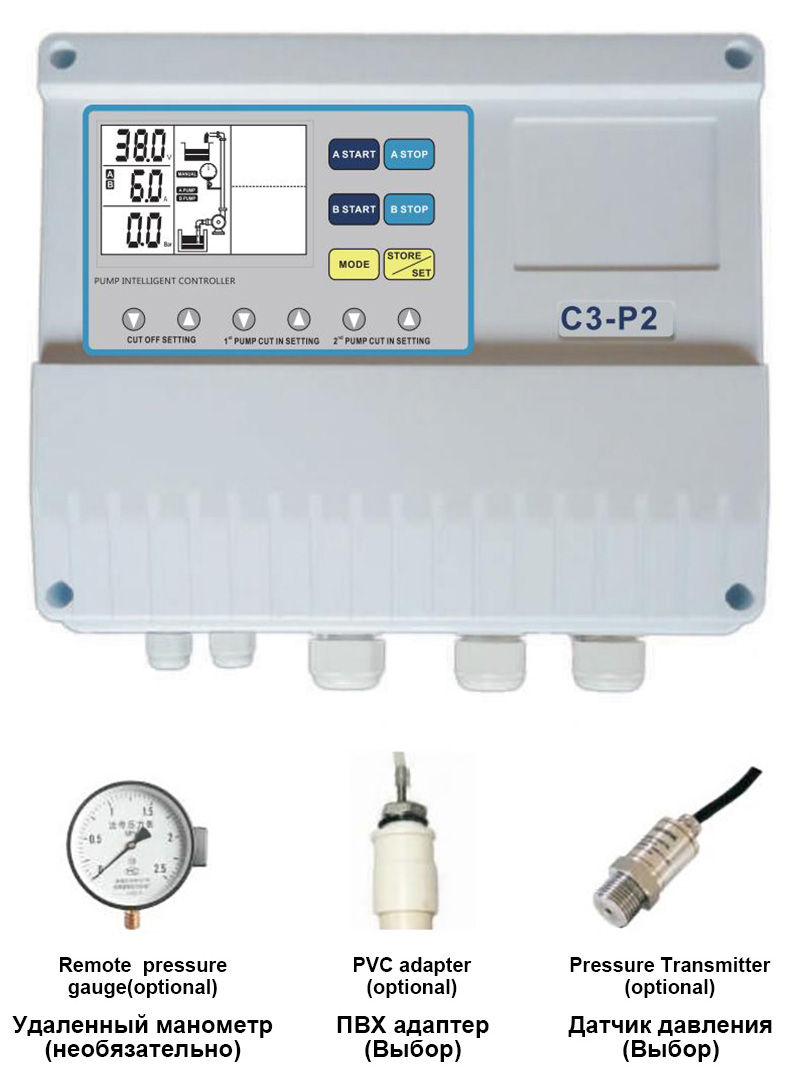

◆ Control characteristics: liquid level sensor, remote pressure gauge (Show level depth in real time)
◆Features: HD liquid crystal dynamic English
◆Control mode: manual/automatic, automatic alternation of double pumps, automatic fault switching
◆ Full protection in manual / automatic mode
◆ Five recent pump failures.
◆ Show the total operating time of the pump
◆ Calibration button
◆ Remote network port
◆Status setting
◆ Fault warning
◆ Overfill warning
Double pump controller for:
