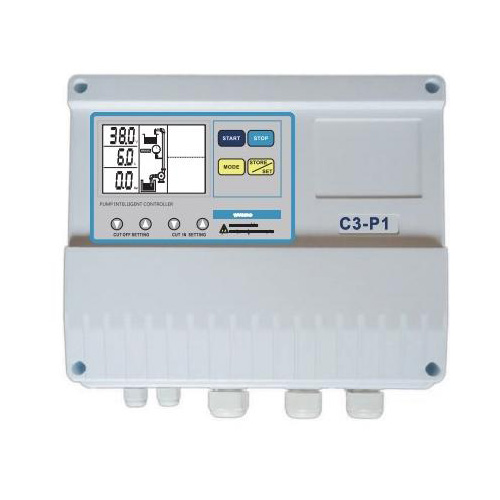

C-P1 Pressure Boost Single Pump Controller

C-P1 Pressure Boost Single Pump Controller

single pump regulator

(inflator type) C3 - P1 C1 - P1

Key Features:

Rated input voltage:

C3 - P1 AC380V/50HZ, three-phase

C1 - P1 AC220V/50HZ, single phase

Rated output power:

C3 - P1 0.75 KW - 4KW (1hp - 5.5 hp) 5.5 KW - 7.5 KW (7.5 hp - 10hp) 11KW (15hp) 15KW (20hp)

C1 - P1 0.37KW - 2.2KW (0.5hp - 3hp)

Protection function:

◆ Overload protection

◆ Low/overvoltage protection

◆ engine stall protection

◆ Protection against dry operations without sensors

◆ Phase break protection (single phase without this function)

◆ Phase imbalance protection (single-phase without this function)

◆ Phase inversion protection (single phase without this function)

Main features:

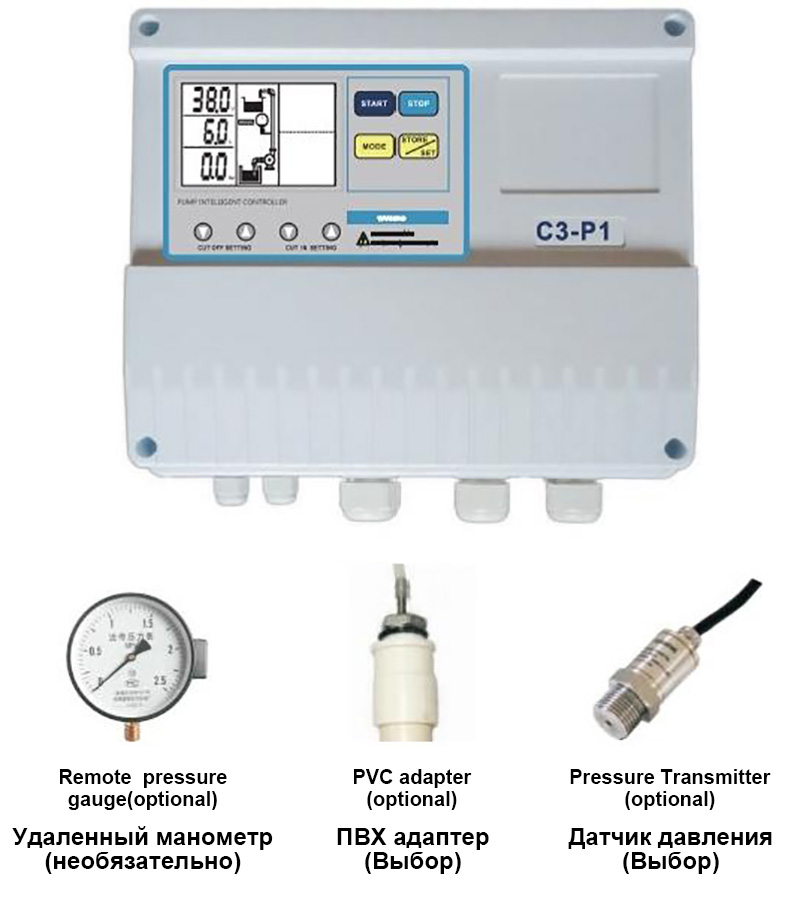

◆ Control characteristics: liquid level sensor, remote pressure gauge (show level depth in real time)

◆Features: HD liquid crystal dynamic English

◆ Control mode: manual / automatic

◆ Full protection in manual / automatic mode

◆ Five recent pump failures.

◆ Show the total operating time of the pump

◆ Calibration button

◆ Remote network port

◆Status setting

◆Over high voltage alarm

◆ Fault warning

Protection class: IP54

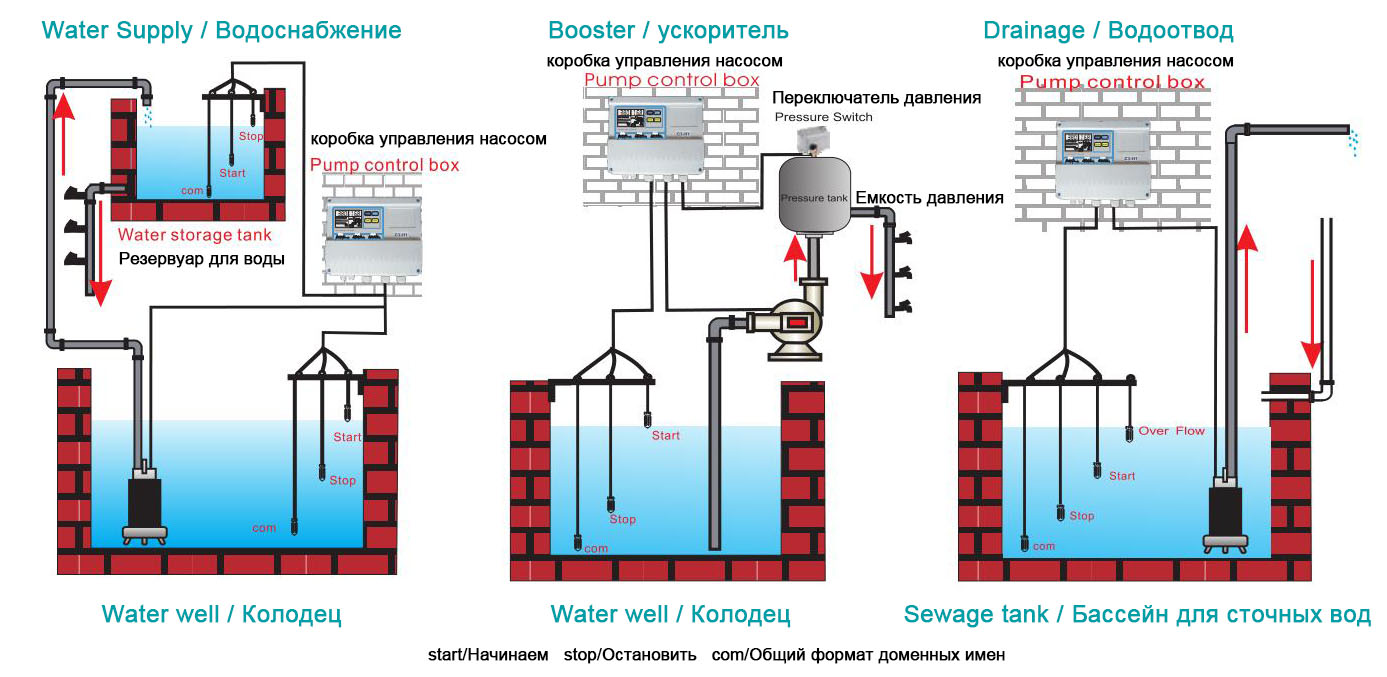

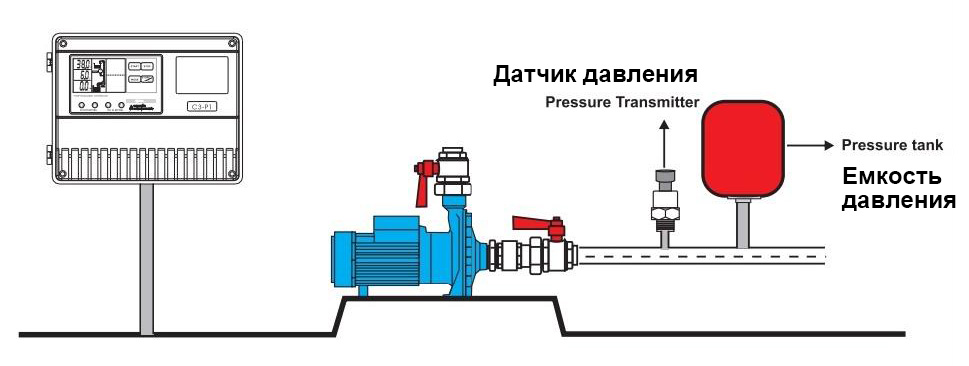

Typical application example

Single pump controller, for:
