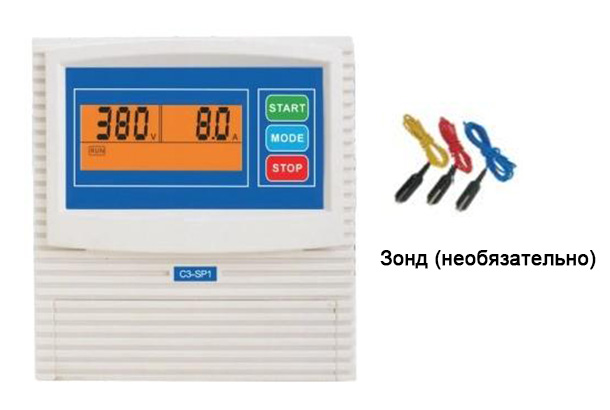

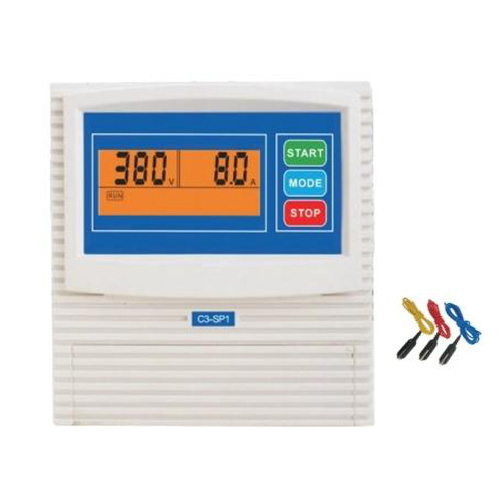

C-SP1 Intelligent Pump Controller

ZEN Machinery customized C-SP1 Intelligent Pump Controller

Intelligent Water Pump Controller

C3 - SP1 C1 - SP1

Key Features:

Rated input voltage:

C3 - SP1 AC380V/50HZ, three-phase

C1 - SP1 AC220V/50HZ, single phase

Rated output power:

C3 - SP1 0.75KW - 4KW (1hp - 5.5hp) 5.5KW - 7.5KW (7.5hp - 10hp)

C1 - SP1 0.37KW - 2.2KW (0.5hp - 3hp)

Protection function:

◆ Overload protection

◆ Low/over voltage protection

◆ engine stall protection

◆ Protection against dry operations without sensors

◆ Phase break protection (single phase without this function)

Main features:

◆ Control characteristics: pulse electrodes probes / float switches / electrical contacts pressure gauges / pressure switches

◆Features: HD liquid crystal dynamic English

◆ Control mode: manual / automatic

◆ Full protection in manual / automatic mode

◆ Five recent pump failures.

◆ Show the total operating time of the pump

◆ anti-corrosion protection of the pump shaft

◆ Calibration button

◆ scintillation command in the opposite direction of the probe line

◆ Fault warning

◆ Fast water supply when power is cut off or restored

◆Status setting

◆ Drain alarm

◆ Liquid level sensor transmission distance 200m

Protection class: IP22
