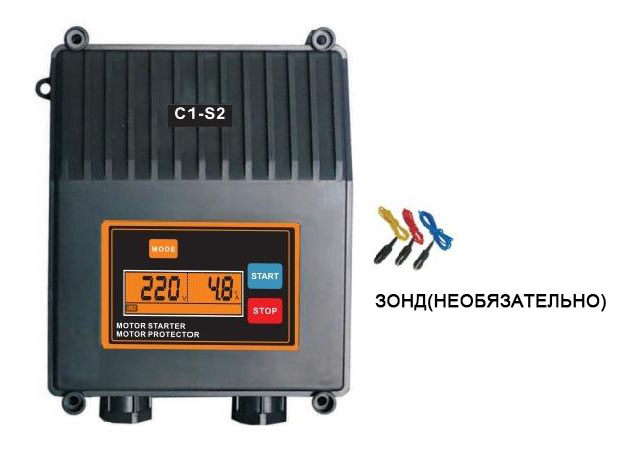

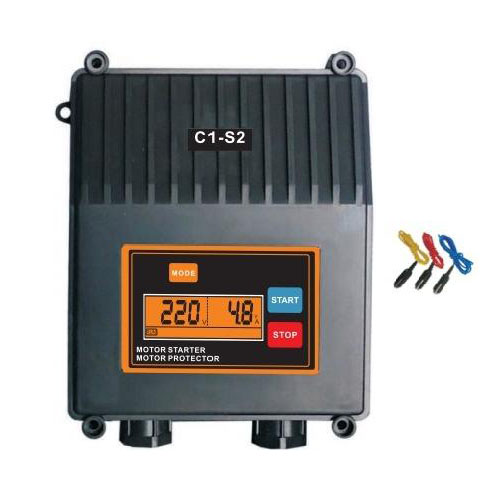

C-S2 Intelligent Pump Controller

C-S2 Intelligent Pump Controller

Intelligent water pump controller C1 - S2

Key Features:

Rated input voltage: AC220V/50HZ, single phase

Rated output power: 0.37 kW - 2.2 kW (0.5 HP - 3 HP)

Protection function:

◆ Overload protection

◆ Low/over voltage protection

◆ engine stall protection

◆ Protection against dry operations without sensors

Main features:

◆ Control characteristics: pulse electrodes probes / float switches / electrical contacts pressure gauges / pressure switches

◆Features: HD liquid crystal dynamic English

◆ Control mode: manual / automatic

◆ Full protection in manual / automatic mode

◆ Five recent pump failures.

◆ Show the total operating time of the pump

◆ anti-corrosion protection of the pump shaft

◆ Button calibration

◆ scintillation command in the opposite direction of the probe line

◆ Fault warning

◆ Fast water supply when power is cut off or restored

◆ Button calibration status indicator

◆ Liquid level sensor transmission distance 200m

Protection class: IP54
