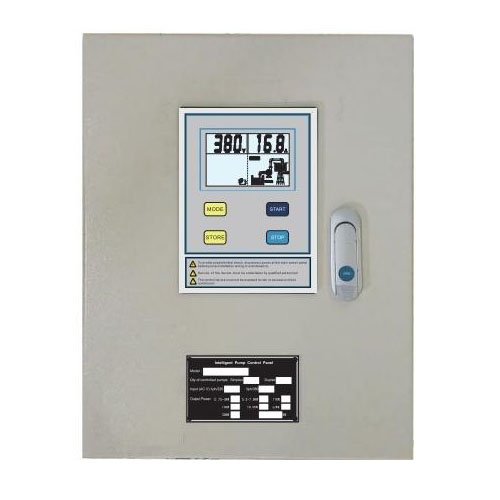

C-T1 Single Pump Controller

C-T1 Single Pump Controller

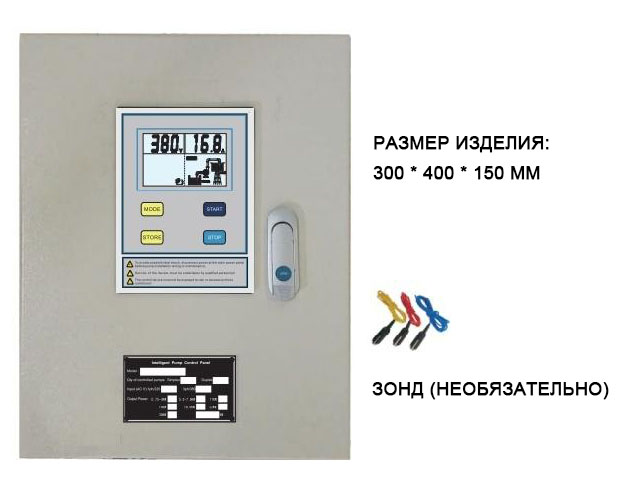

Single pump controller C3 - T1 C3 - T1/W

Key Features:

Rated input voltage: AC380V/50HZ three-phase

Rated output power: 0.75 kW - 4 kW (1hp - 5.5 HP) 5.5 kW - 7.5 kW (7.5 HP - 10 HP) 11 kW (15 HP) s.) 15 kW (20 hp)

Protection function:

◆ Protection against dry operations without sensors

◆ Overload protection

◆ Low/over voltage protection

◆ Phase protection

◆ engine stall protection

Main features:

◆ Control characteristics: pulse electrodes probes / float switches / electrical contacts pressure gauges / pressure switches

◆Features: HD liquid crystal dynamic English

◆ Control mode: manual / automatic

◆ Full protection in manual / automatic mode

◆ Five recent pump failures.

◆ Show the total operating time of the pump

◆ anti-corrosion protection of the pump shaft

◆ Calibration button

◆ scintillation command in the opposite direction of the probe line

◆ Fault warning

◆ Fast water supply when power is cut off or restored

Typical application example

Single pump controller, for:
